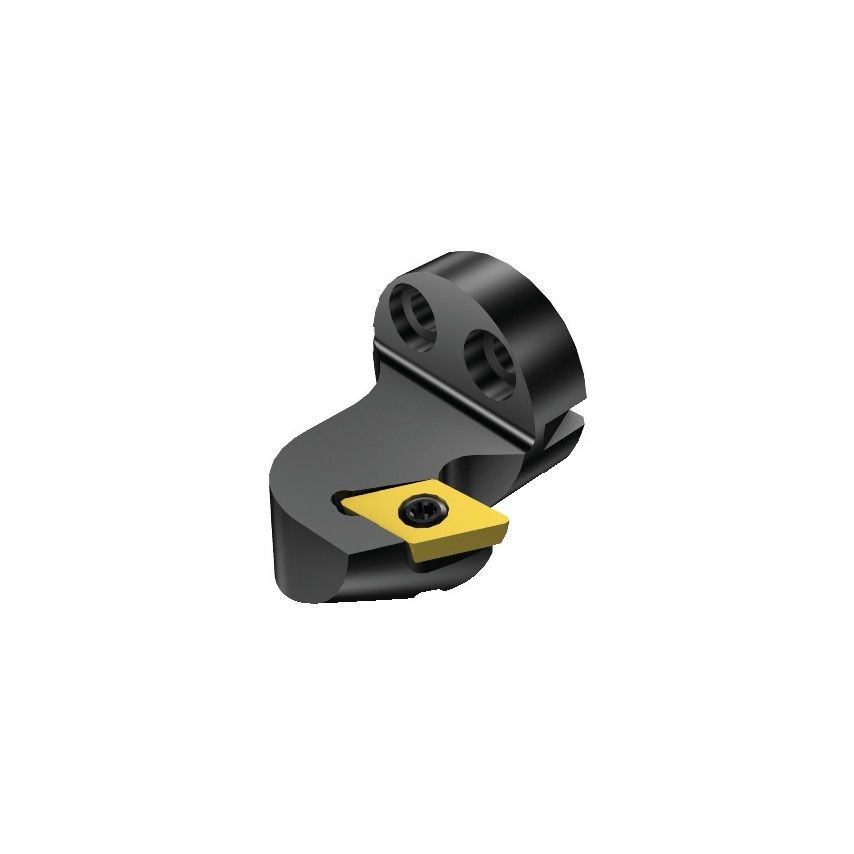

570-SDUPR-20-07-EX Head for Back Boring

Minimum Bore Diameter: 27 mm Coolant Entry Style Code: 8: decentral over slots on the shank Adaptive Interface Machine Direction: SL head (screw mounted) -size 20 Workpiece Side Body Angle: 0 deg CoroPak: 1.2 Machine Side Body Angle: 0 deg Body Material Code: Steel Coolant Exit Style Code: 3: axial inclined exit Through Hole Function Property: Yes Unit System: Metric Functional Length: 15 mm Product Type: CoroTurn 111 head for back boring Item Weight: 0.027 kg

Workpiece Side Body Angle	0\u00b0
Through Hole Function Property	Yes
CoroPak	63
Unit System	Metric
Maximum Overhang	15mm
MFR Part No.	11375943
Functional Length	15mm
Hand Preference	Right
Maximum Ramping Angle	27\u00b0
Coolant Exit Style	3
Tool Cutting Edge Angle	93\u00b0
Minimum Bore Diameter	27mm
Damping Property	No
Tool Lead Angle	-3 deg
Connection Diameter	20mm
Machine Side Body Angle	0\u00b0
Body Material	Steel
