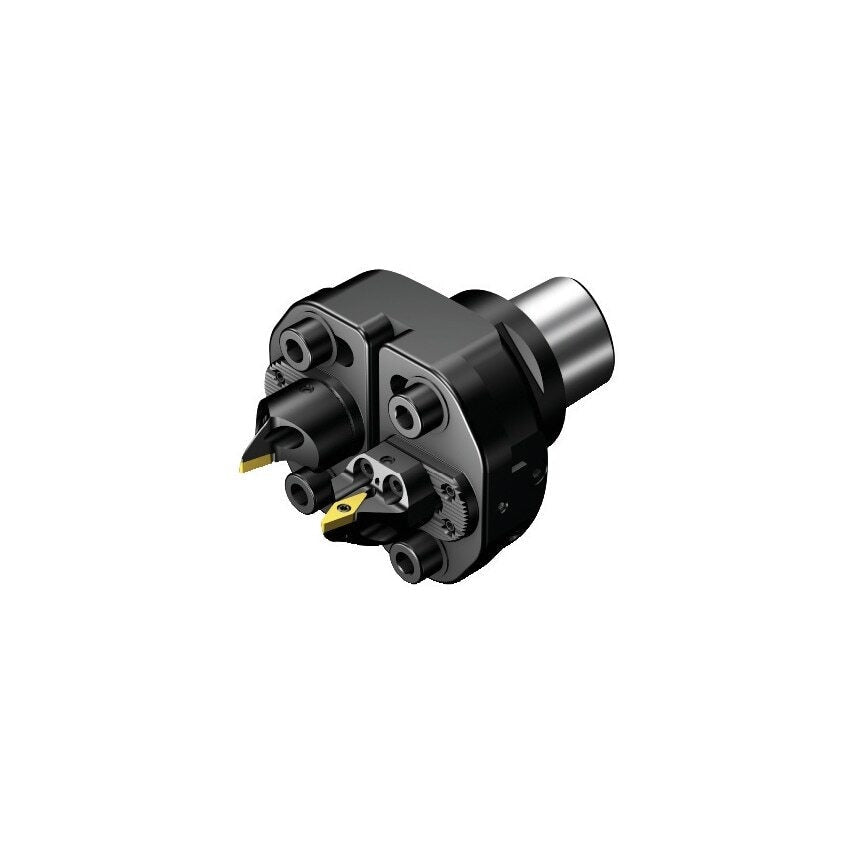

Product Range: CoroBore XLTool Type: Rough boring and fine boringThe CoroBore XL system is a group of large diameter boring tools. The wide application range covers rough and fine boring, interpolation turning as well as face grooving and the unique SpiroGrooving method.Features & Benefits- Large-diameter boring system- Silent Tools adapters available for vibration-free boring- Optimized cartridges designed for greatest stability- Internal coolant to the cutting edge- CoroBore 111 dedicated rough boring insertsApplication Area- Conventional boring, back boring and external boring- Rough boring- Fine boring- SpiroGrooving- Face grooving- Interpolation turning- The CoroBore XL system covers diameters 1481275 mm (5.82750.197 inch)
| Body Material | Steel |
| Maximum Cutting Diameter | 75.6mm |
| Weight | 2.65kg |
| Coolant Entry Style Code | 55 |
| Minimum Cutting Diameter | 30mm |
| Maximum Cutting Depth | 7.5mm |
| CoroPak | 114 |
| Rotational Speed Maximum | 3000 1/min |
| Through Hole Function Property | Yes |
| Connection Diameter | 50mm |
| Tool Cutting Edge Angle | 67\u00b0 |
| Usable Length | 9mm |
| Overall Height | 70mm |
| Unit System | Metric |
| MFR Part No. | 7323221337735 |
| Functional Length | 87mm |
| Maximum Depth of Cut | 7.5mm |
