£19.80
Loading...

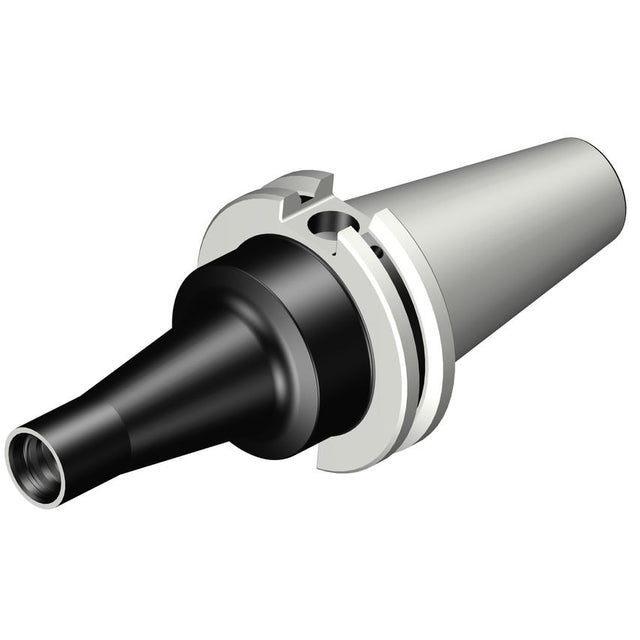

Product Range: Coromant EHTool Type: Turning centresTooling flexibility for small diametersAccess with shanksShanks in different lengths and materials enable you to bore hard-to-access features with ease.Productivity with integrated machine adaptorsThe short gauge length of an integrated machine adaptor plus cutter head makes it possible to increase productivity even in small, vibration-sensitive machines.Clearance and reachThe flexible range of undersized shanks in various lengths enables milling of deep shoulders with stability and clearance.Features & Benefits- Tooling flexibility for small diameters- Combine different tool holders and cutter heads to configure an optimized tooling solution for all your machining- The coupling is based on a centering screw that facilitates quick mounting of heads
| Unit System | Imperial |
| Through Hole Function Property | Yes |
| CoroPak | 15.88 |
| Adaptive Interface Workpiece Direction | Coromant EH - Inch - E20 |
| Weight | 1.2kg |
| Body Material | Steel |
| Coolant Entry Style Code | 22 |
| Rotational Speed Maximum | 18000 1/min |
| Functional Diameter | 44.45mm |
| Functional Length | 96mm |
| MFR Part No. | 6048688 |
| Damping Property | No |
| Coolant Exit Style | 1 |
