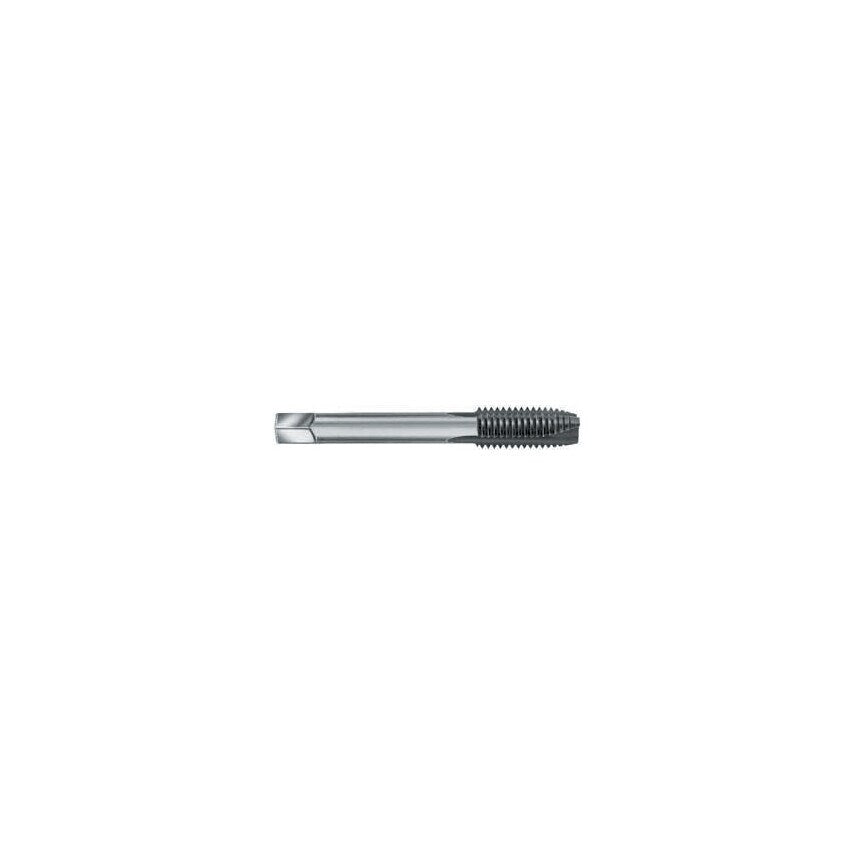

Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2, manufactured from high speed steel they are highly durable. Swarf is forced forward in the direction of the cut for greater efficiency.
Features and Benefits
HSS construction for added durability
Straight flutes are ideal for working with steel up to 750 N/mm2
Greater cutting efficiency as swarf is forced forward in the direction of the cut
Typical Applications
Tapping
| Tap Type | Spiral Point |
| Product Type | Spiral Point Taps |
| Series | 60010 |
| Number of Flutes | 3 |
| Material Application | K | M | P |
| Finish/Coating | Steam Tempered |
| Overall Length | 112.0mm |
| Shank Diameter | 14mm |
| MFR Part No. | 6001020.02.5 |
| Thread Direction | Right Hand |
| Pitch | 2.5mm |
| Material | HSS |
| Lead | Taper |
| Square Width | 11.2mm |
| Thread Size | M20x2.5 |
| Class of Fit | 6H |
| Teeth per Inch | 2.5 |
| ISO Category | K | M | P |
| Material Grade | HSS |
| Thread Standard | Metric Coarse |
| Thread Length | 37mm |
| Dimensions Standard | ISO 529 |
