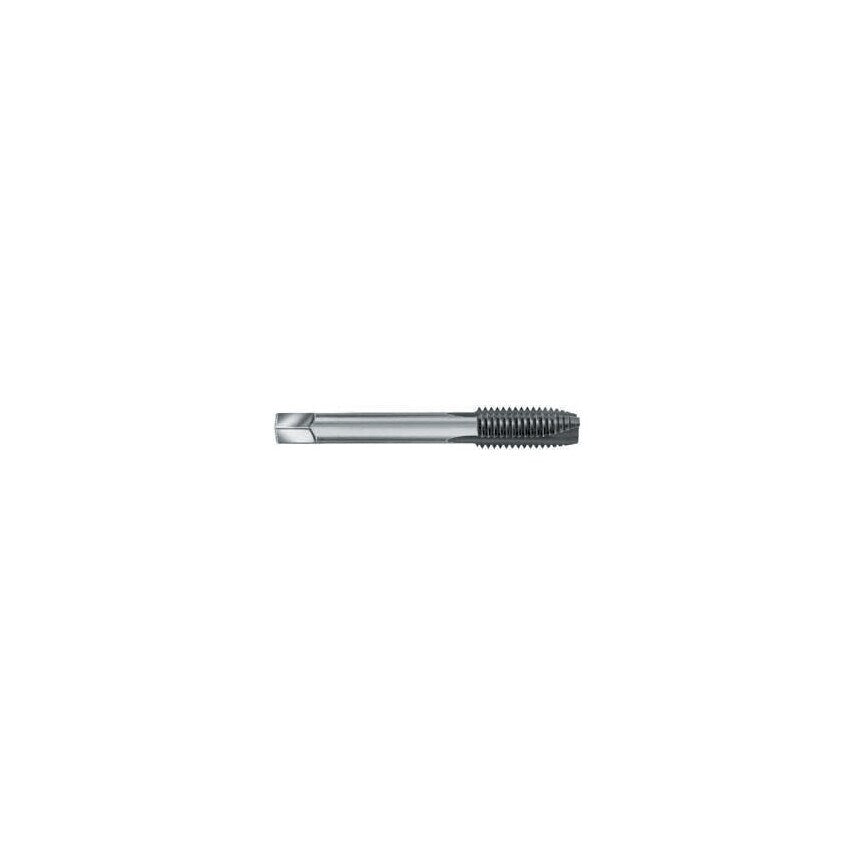

Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2, manufactured from high speed steel they are highly durable. Swarf is forced forward in the direction of the cut for greater efficiency.
Features and Benefits
HSS construction for added durability
Straight flutes are ideal for working with steel up to 750 N/mm2
Greater cutting efficiency as swarf is forced forward in the direction of the cut
Typical Applications
Tapping
| Product Type | Spiral Point Taps |
| Teeth per Inch | 0.5 |
| Dimensions Standard | ISO 529 |
| Thread Size | 3.0mm | M3 |
| Number of Flutes | 3 |
| Finish/Coating | Steam Tempered |
| Thread Direction | Right Hnd |
| Thread Standard | Metric Coarse |
| MFR Part No. | 600103.00.5 |
| Pitch | 0.50 |
| Square Width | 2.5mm |
| Class of Fit | 6H |
| Overall Length | 48mm |
| ISO Category | P |
| Tap Type | Spiral Point |
| Material Application | P |
| Series | 60010 |
| Thread Length | 16mm |
| Material Grade | HSS |
| Material | HSS | HSS |
| Shank Diameter | 3.15mm |
