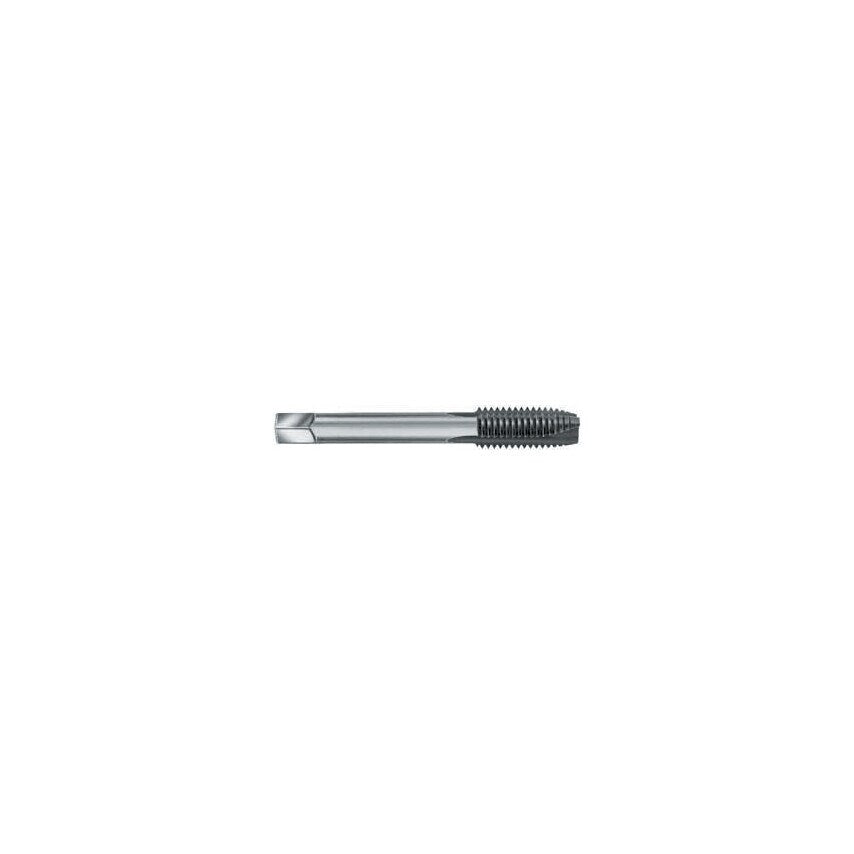

Spiral point Machine tap with straight flutes for working in steel up to 750 N/mm2, manufactured from high speed steel they are highly durable. Swarf is forced forward in the direction of the cut for greater efficiency.
Features and Benefits
HSS construction for added durability
Straight flutes are ideal for working with steel up to 750 N/mm2
Greater cutting efficiency as swarf is forced forward in the direction of the cut
Typical Applications
Tapping
| ISO Category | K | M | P |
| Thread Standard | Metric Coarse |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Shank Diameter | 5mm |
| Series | 60010 |
| Thread Length | 19mm |
| Thread Size | M6 |
| Material Application | K | M | P |
| Product Type | Spiral Point Taps |
| Finish/Coating | Steam Tempered |
| Teeth per Inch | 1 |
| Square Width | 5mm |
| Overall Length | 66mm |
| MFR Part No. | 600106.01.0 |
| Material | HSS |
| Tap Type | Spiral Point |
| Dimensions Standard | ISO 529 |
| Material Grade | HSS |
| Pitch | 1.00 |
| Thread Direction | Right Hnd |
