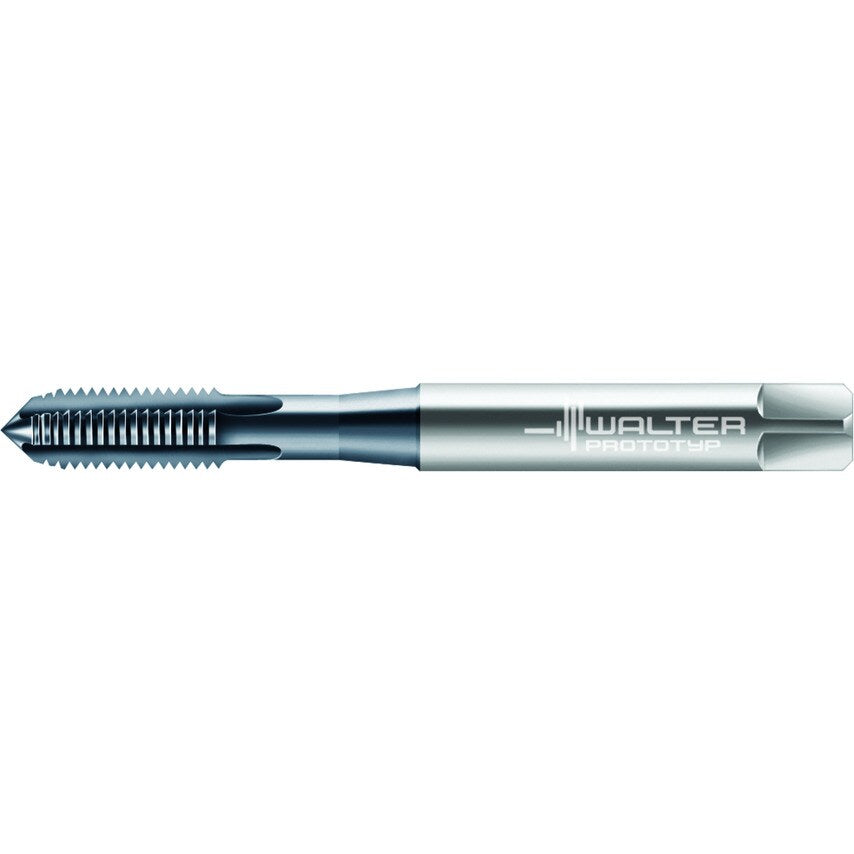

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 371 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole TICN M 5 P=0.0315in
| Thread Pitch | 0.8mm |
| Clamping Width | 4.9mm |
| Usable Length | 25mm |
| Tool Designation | E2031406-M5 |
| Number of Grooves | 4 |
| Functional Length | 70mm |
| Driving Square Length | 8mm |
| Connection Diameter | 6mm |
| MFR Part No. | 5603088 |
| Cutting Edge Length | 13mm |
| Thread Size | M 5 |
