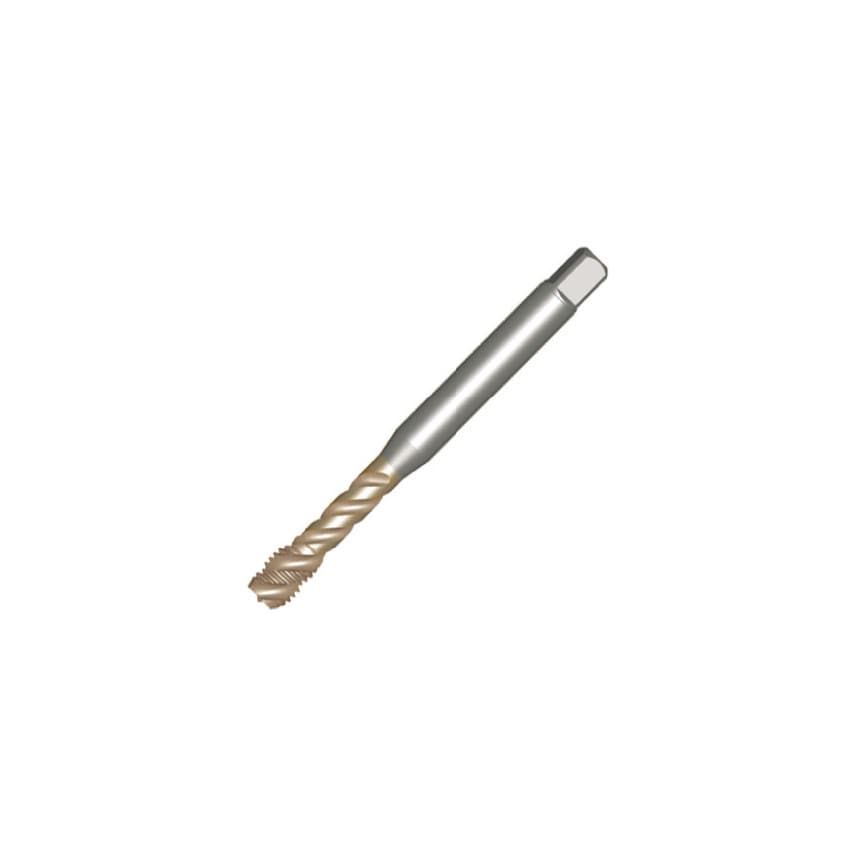

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Connection Diameter | 14mm |
| Coolant Entry Style | Without Coolant |
| Threads Per Inch | 16 |
| Blind Hole Function Property | Yes |
| ISO Cutting Tool Material | HSS >=4 |
| Thread Diameter Size | UNF 3/4-16 |
| CoroPak | 14.1 |
| Coolant Exit Style | 0 |
| Weight | 0.14kg |
| Functional Length | 125mm |
| Coating Process Type | PVD |
| Usable Length | 77.5mm |
| Grade | B145 |
| MFR Part No. | 26539512 |
| Basic Standard Group | DIN 2184-1 |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Thread Tolerance Class | 2B |
| Coating Type | FeN |
