Scsi Standard Chain Separator

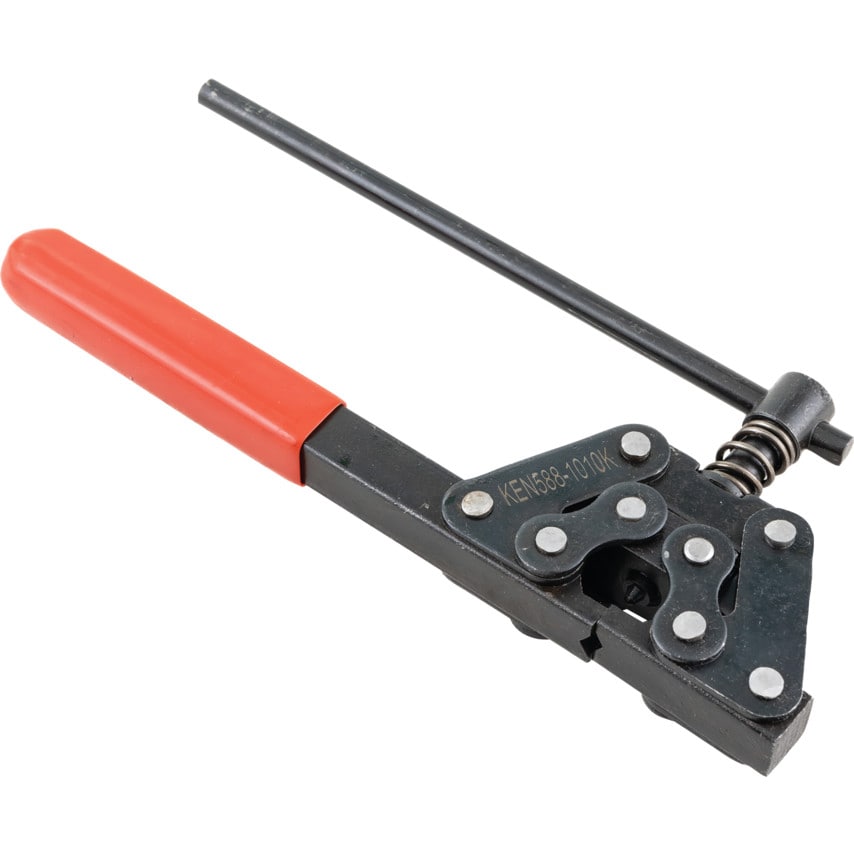

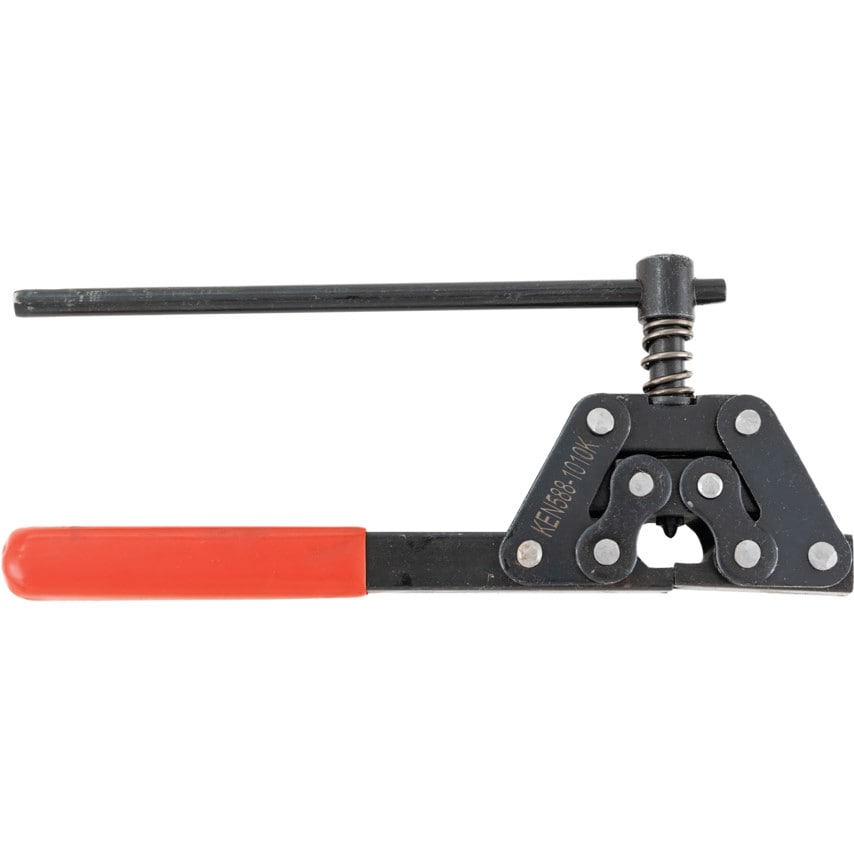

All steel construction, industry quality roller and bush chain separator. Designed for separating roller and bush chains that have end softened pins. To remove hardened pins the ends must first be removed by grinding. Simple to operate, simply grip the chain in the self-closing jaws that also support the chain to prevent twisting as the link pins are driven out. Then turn the T-handle to drive the pins out. Always ensure that the machine is switched off before disconnecting or connecting a chain. Features and Benefits All steel construction makes for a highly durable product Simple to operate Available in two sizes to suit your needs Typical Applications Engineering Workshops Automotive Notes Model SCS1 Chain: 9.525 - 15.875mm (0.375" - 0.625") pitch, to BS & ANSI standard Model LCS2 Chain: 19.05 - 31.75mm (0.75 - 1.25") pitch, to BS standard Chain: 19.05 - 25.40mm (0.75 - 1.00") pitch, to ANSI standard

Tool Type	Chain Separator
Maximum Chain Pitch	15.876mm
Standards Met	ANSI | BS
Minimum Chain Pitch	9.525mm
Chain Capacity	9.525 - 15.875mm
