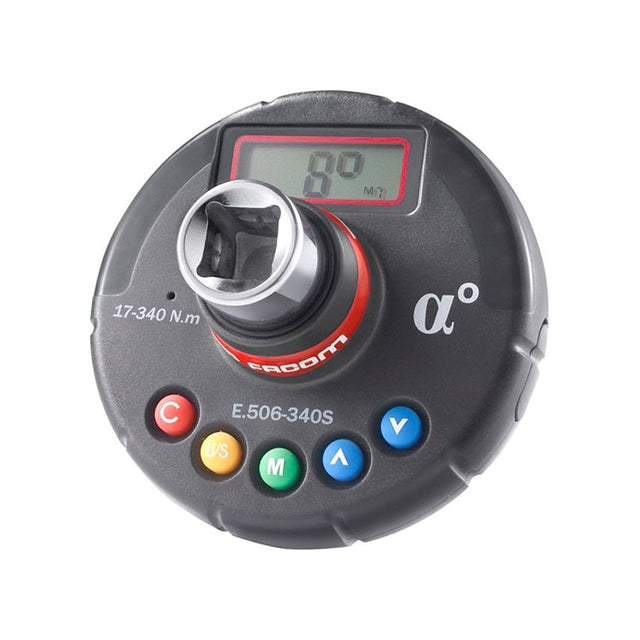

E.506-340S Torque & Angle Adaptor FCME506340S

The Facom E.506-340S Torque & Angle Adaptor is for use in confined spaces to provide torque or angle increments. The electronic display prevents reading errors and tightening is indicated via LED's, and a buzzer. It has 9 torque and/or angle values that can be pre-set, a 50-result memory, a locking keypad, and a magnetised tool (ratchet) fastening. The Facom adaptor has angle tightening eliminating friction issues related with torque tightening. The movement, and hence faster tension, is defined by the screw pitch and tightening angle. Torque/angle tightening is performed in 2 steps, by pre-torquing to approach the parts and eliminate interface faults, and then tightening at a specific angle. Proper assembly tension prevents the fastener from loosening or breaking. Supplied in a plastic case with a calibration certificate and 2 x AAA-LR03 1.5V Batteries. Specification Torque Accuracy & plusmn 3. Angle Accuracy & plusmn 2. Capacity 17-340nm. Measuring Units Nm, lbf. ft, lbf.in, kg.cm and deg. Measuring Mode Peak or Follower.

Capacity	17-340Nm
Maximum Capacity	340Nm
Wrench Type	Norbar End Fittings
MFR Part No.	FCME506340S
Type	Norbar End Fittings
Minimum Capacity	17Nm
