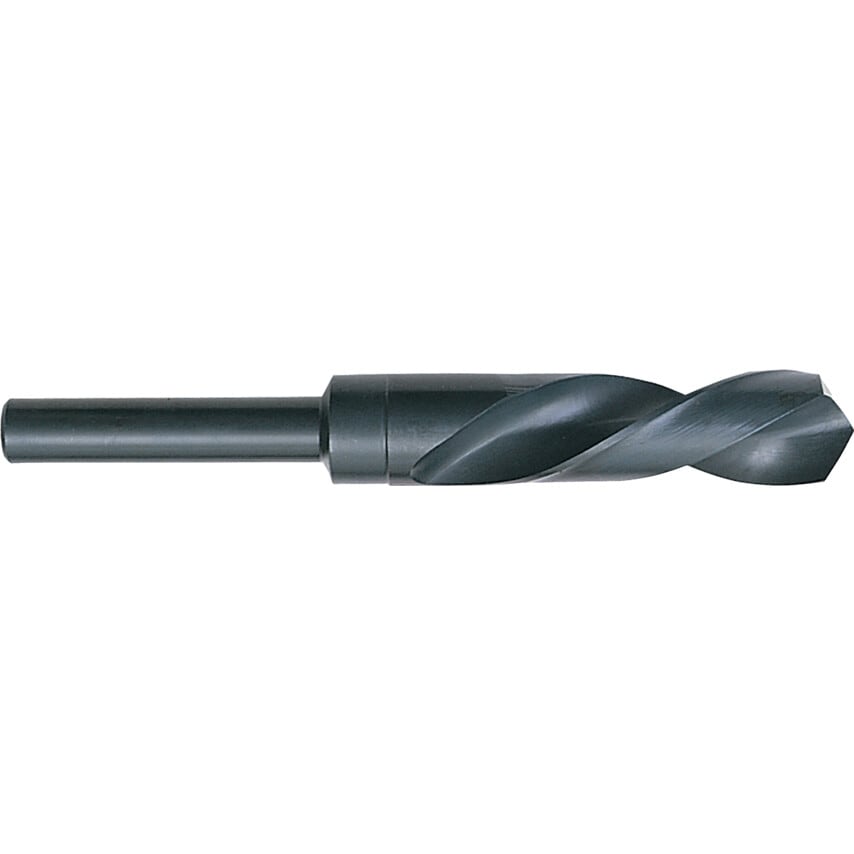

General purpose drills for light duty work, for drilling steels, cast iron, nickel brass and graphite. Reduced parallel shank 1/2". Point angle: 118, helix angle: normal, web thickness: standard, tolerance of diameter: h8, tolerance of shank: 0.01/0.08. Manufactured to works standard.
| Overall Length | 6in |
| Shank Diameter Tolerance | -0.125 |
| Coolant Delivery | External |
| Flute Length | 3-1/16in |
| Drill Diameter Inch | 5/8 |
| Cutting Direction | Right Hand |
| Number of Pieces | 1 |
| Helix Type | Normal Helix |
| Shank Diameter | 1/2in |
| Material Grade | M2 |
| Point Type | Standard |
| Flute Construction | Ground flutes |
| Number of Flutes | 2 |
| Finish/Coating | Uncoated |
| Drill Diameter Tolerance | H8 |
| Web Thickness | Standard |
| Material | HSS |
| Drill Diameter | 5/8in |
| Point Angle | 118\u00b0 |
| Standards Met | Works Standards |
| Flute Type | Spiral |
| Shank Type | Reduced Shank |
