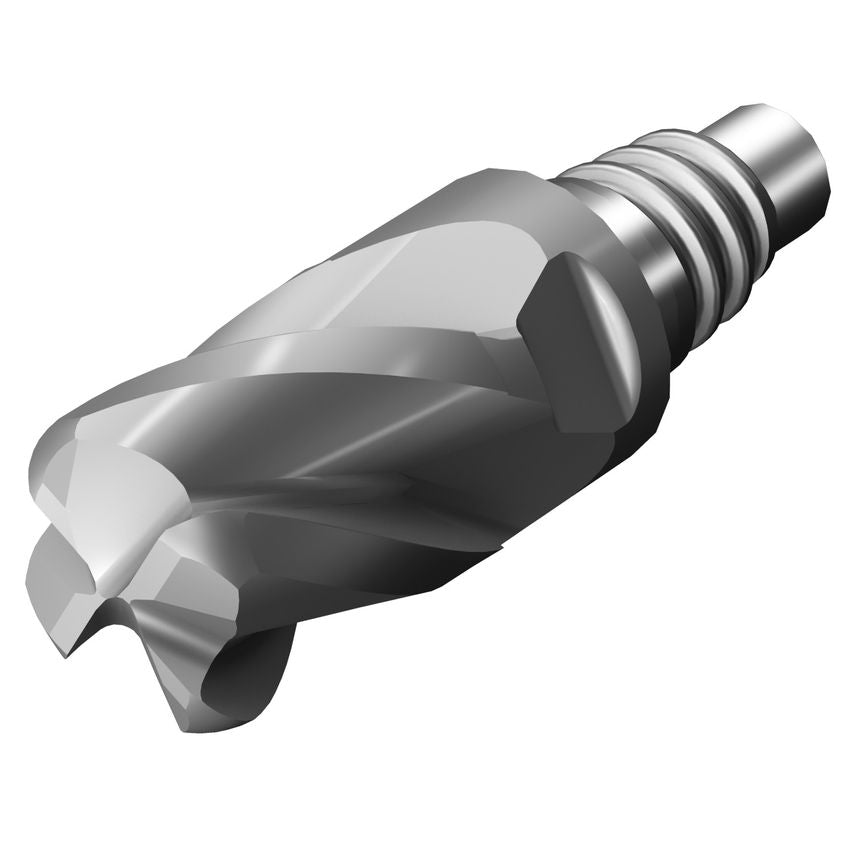

Product Range: CoroMill 316Solid carbide exchangeable headsCoroMill 316 system offers milling solutions for high feed face milling, slot milling, helical interpolation, shoulder milling, profile milling and chamfer milling of components in various material groups from ISO P to ISO S. The exchangeable milling heads allow you to quickly, easily and accurately switch between various operations. The end mills are even suitable for five axis milling of flanks which often requires tapered tools for stability at longer tool reach.CoroMill 316 features the Coromant EH coupling which is based on a self-centering screw thread for secure mounting and maximum strength. The coupling has a physical stop which makes it easy to feel when the head is correctly tightened and helps to not overstress the clamping.
| CoroPak | 110 |
| Center Cutting Capability | 9.53 |
| Basic Standard Group | Coromant |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Functional Diameter | 9.15mm |
| Peripheral Effective Cutting Edge Count | 4 |
| MFR Part No. | 6874242 |
| Corner Radius | 12.7mm |
| Cutting Diameter | 38.1mm |
| Rotational Speed Maximum | 50000 1/min |
| Maximum Cutting Depth | 15.3mm |
| Unit Measured | Imperial |
| Grade | 1730 |
| Coating Type | AlTiN |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Depth of Cut | 15.3mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Adaptive Interface Machine Direction (ADINTMS) | Coromant EH - Inch - E12 |
| Connection Diameter | 10mm |
| Coating Process Type | PVD |
| Functional Length | 154.81mm |
