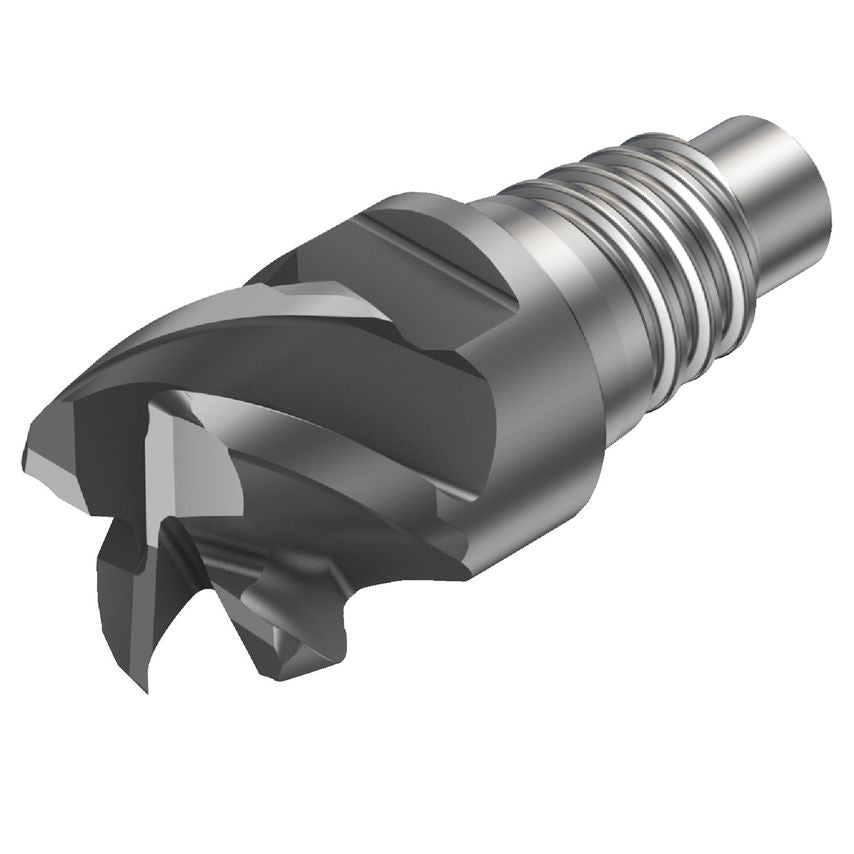

Product Range: CoroMill 316Solid carbide exchangeable headsCoroMill 316 system offers milling solutions for high feed face milling, slot milling, helical interpolation, shoulder milling, profile milling and chamfer milling of components in various material groups from ISO P to ISO S. The exchangeable milling heads allow you to quickly, easily and accurately switch between various operations. The end mills are even suitable for five axis milling of flanks which often requires tapered tools for stability at longer tool reach.CoroMill 316 features the Coromant EH coupling which is based on a self-centering screw thread for secure mounting and maximum strength. The coupling has a physical stop which makes it easy to feel when the head is correctly tightened and helps to not overstress the clamping.

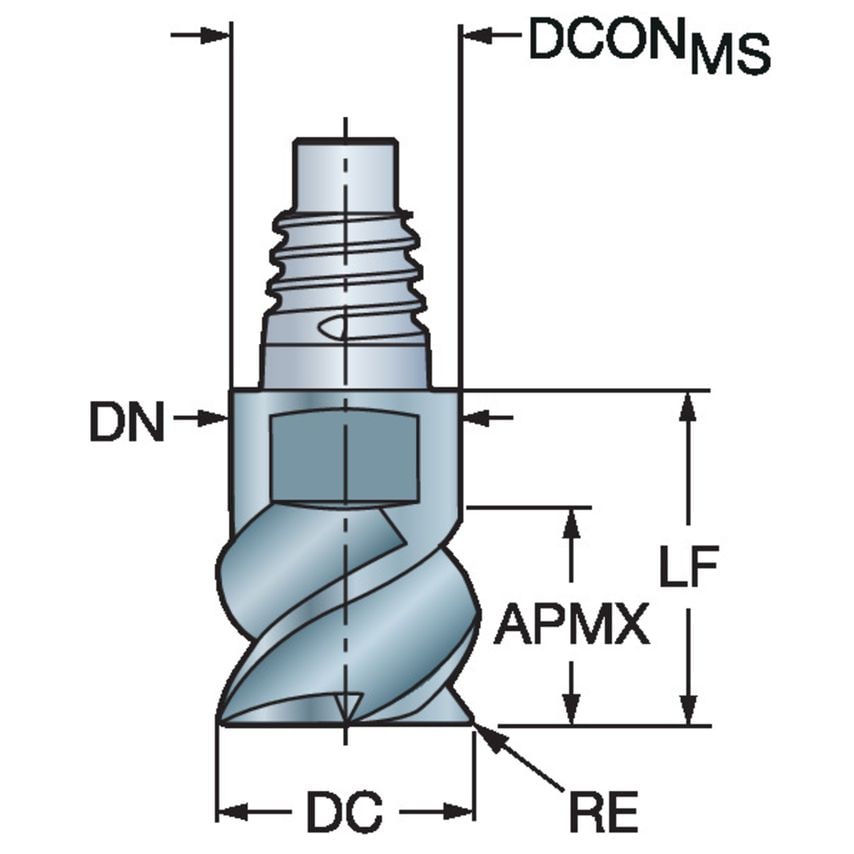

| Corner Radius | 38.1mm |
| Peripheral Effective Cutting Edge Count | 4 |
| Functional Length | 15.88mm |
| Grade | 1730 |
| CoroPak | 215 |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 11mm |
| Connection Diameter | 12mm |
| Adaptive Interface Machine Direction (ADINTMS) | Coromant EH - Metric - E20 |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 7611786 |
| Basic Standard Group | Coromant |
| Center Cutting Capability | 19.05 |
| Coating Type | AlTiN |
| Functional Diameter | 14.61mm |
| Maximum Ramping Angle | 5\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit Measured | Metric |
| Maximum Depth of Cut | 11mm |
| Cutting Diameter | 70.5mm |
| Weight | 0.12kg |
| Through Hole Function Property | Yes |
