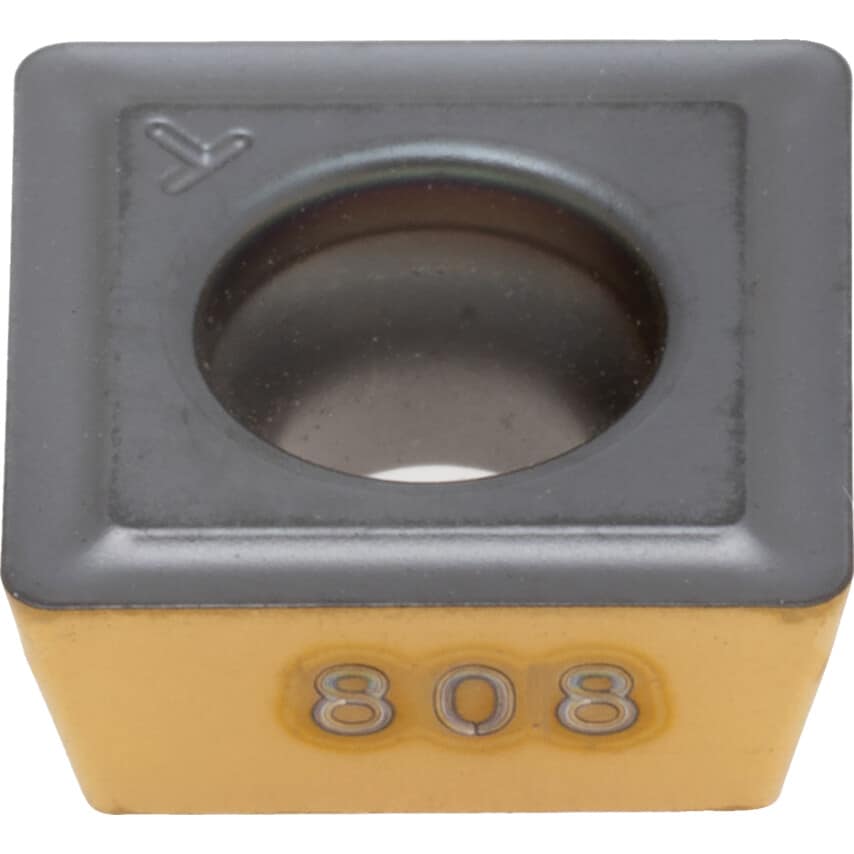

SOMT 09T306-DT Insert Grade IC808

SOMT-DT: Inserts with a DT chipformer for DR drills, for general applications at medium-to-high feed rates. Grade: IC908 A hard, fine grain substrate with excellent chipping resistance, combined with a new TiAlN PVD coating. Provides high wear and oxidation resistance. Recommended for a very wide range of materials applications and machining conditions. ISO Range - P/M/K: (P15-P30)(M20-M30)(K20-K40) ISO Range - H/S/N: (H10-H20)(S10-S25) Grade or Coating Type: PVD Grade: IC808 A hard, fine grain substrate with excellent chipping resistance, combined with a new 'SUMO TEC' TiAlN PVD coating. Provides high wear resistance. Recommended for a very wide range of materials. ISO Range - P/M/K: (P15-P30)(M20-M30) ISO Range - H/S/N: (H10-H20)(S10-S25) Grade or Coating Type: PVD Coating Layers: TiAlN/AlTiN+TiN

Shape	Square
Product Type	Drill Inserts

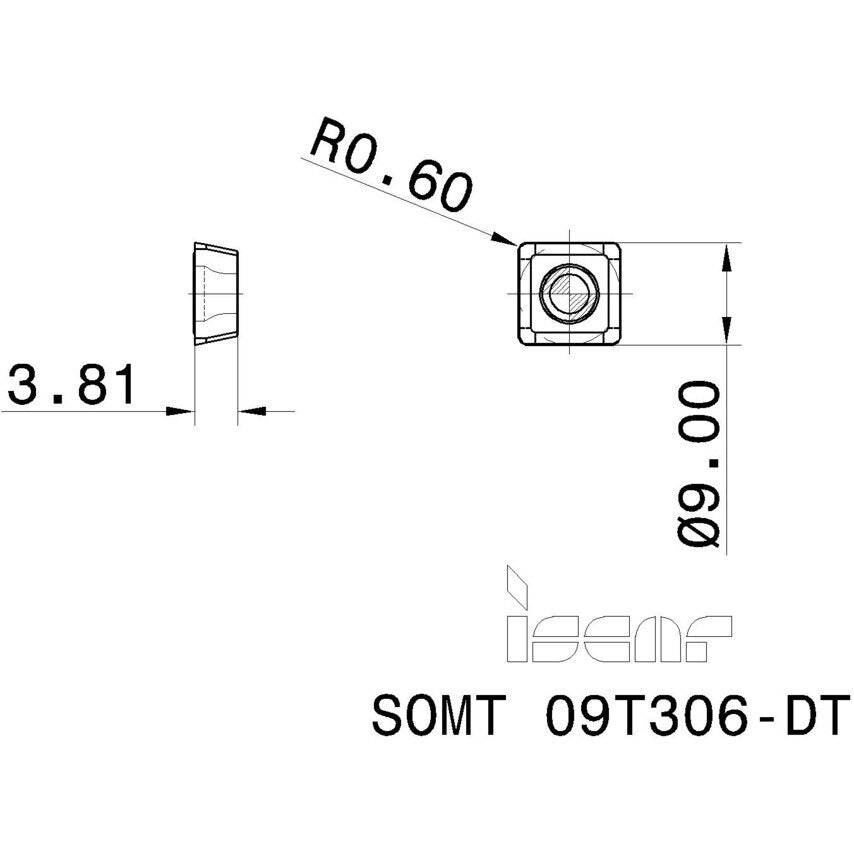

Insert Size	09T306-DT
Cutting Edge Length	9.00mm
Corner Radius	0.60mm
Finish/Coating	PVD-AlTiN
ISO Cut	P15-P30
ISO Category Grade	K | M | P
Insert Style	SOMT-DT
Manufacturer Grade	DT
MFR Part No.	5507875
Drilling System	Dr-Twist
Insert Thickness	3.81mm
ISO Designation	SOMT 09T306-DT
Material	Carbide
