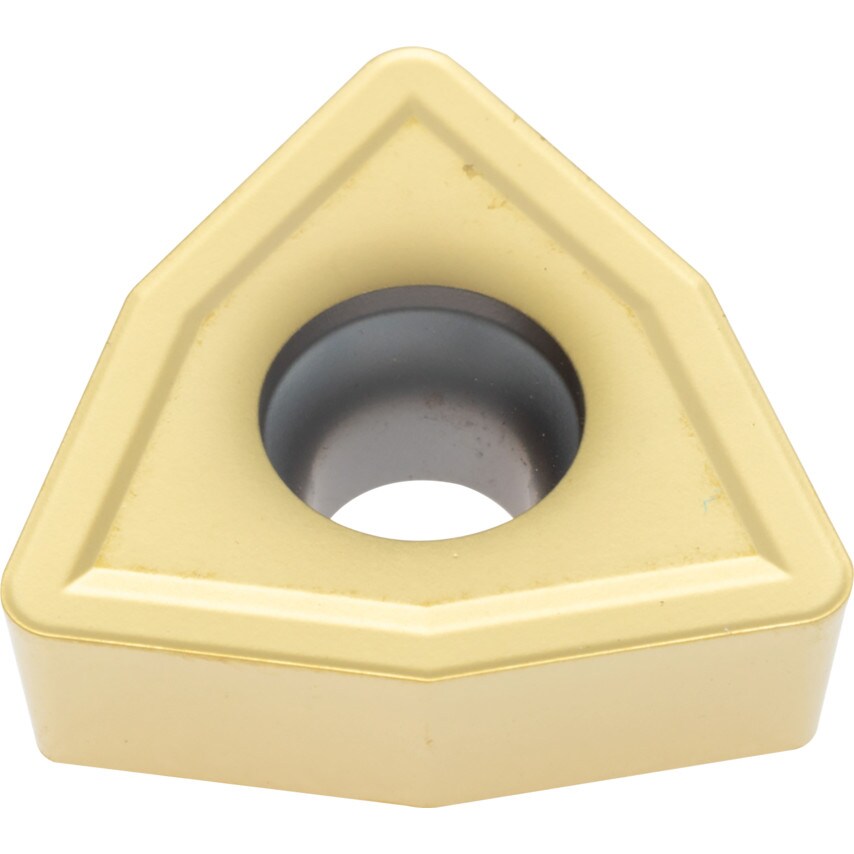

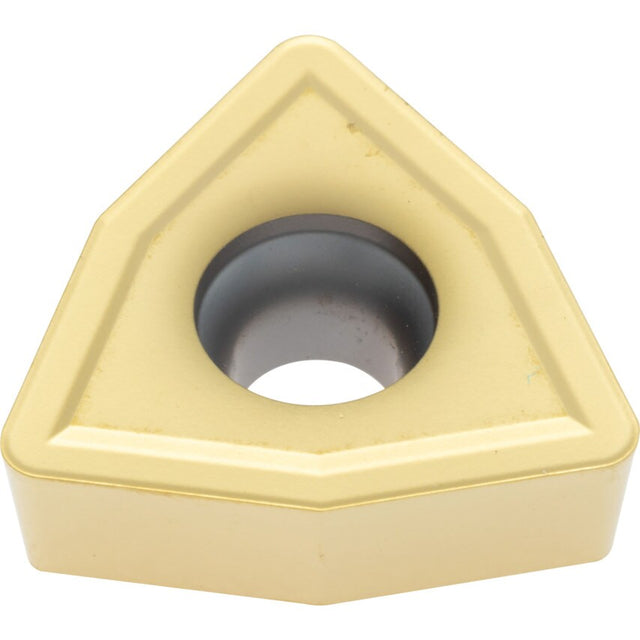

WCMX drilling inserts feature a hard carbide construction with a PVD TiN coating ideal for use with medium feed applications
Features and Benefits
Hard carbide construction for increased cutting strength
PVD TiN coating for increased heat and wear resistance
3 cutting edges for efficient cutting performance
| Material Application | Cast Iron | Stainless Steels | Steels |
| Shape | Trigon |
| Manufacturer Grade | 1020 |
| Inscribed Circle | 12.7mm |
| ISO Category Grade | K | M | P |
| Corner Radius | 1.2 |
| ISO Category | K | M | P |
| Clearance Angle | 7\u00b0 |
| Material | Carbide |
| Chipbreaker | 53 |
| Finish/Coating | TiN |
| Thickness | 4.76mm |
| ISO Designation | WCMX 080412R-53 |
| Cutting Edge Length | 8.7mm |
| Insert Size | 0804 |
| Cutting Direction | Right Hand |
| Product Type | Drilling Inserts |
| Insert Style | WCMX |
