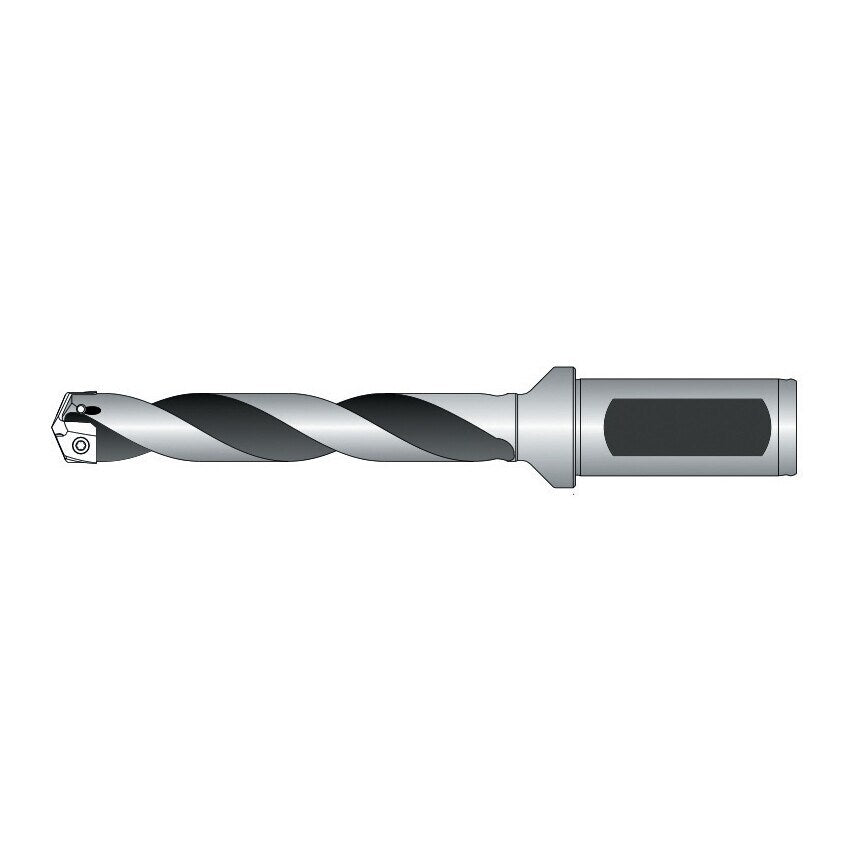

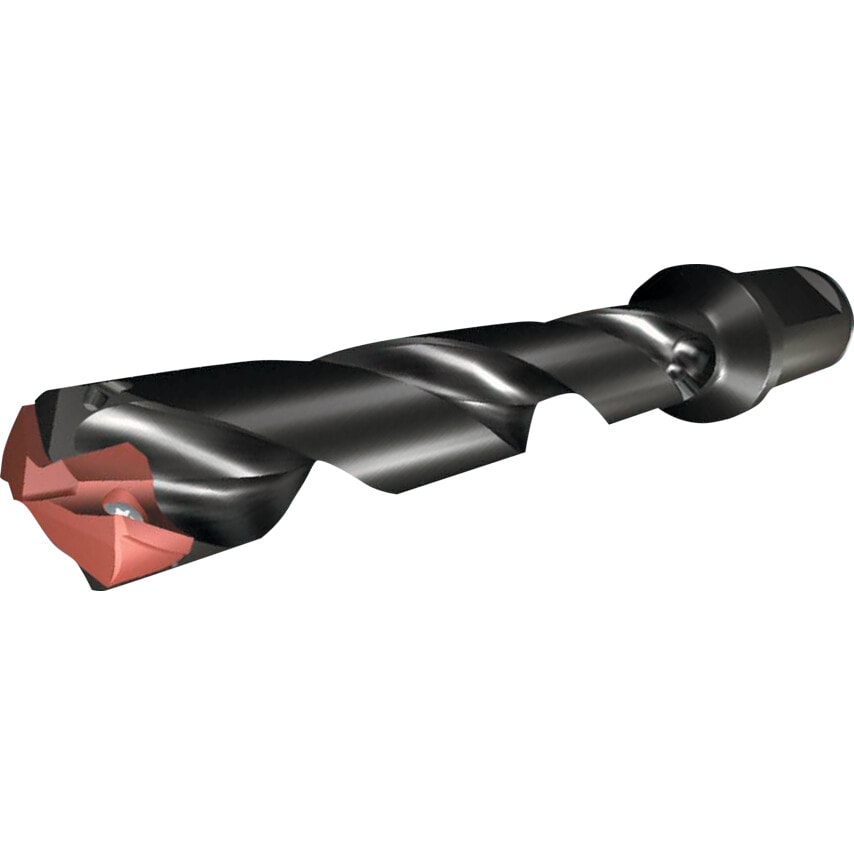

Example from the 16 Series GEN3SYS Holder range
Features and Benefits
Diameter Range: 12.00mm to 32.00mm.
Drill Depth: Available in 3 x , 5 x and 7 x .
The unique geometry of the GEN3SYS Drilling System enables excellent chip control.
The GEN3SYS High Penetration Drilling System out penetrates by up to 20% faster than other competitive drilling products.
The GEN3SYS High Penetration Drilling System has a highly precise locating pad for absolute repeatability and reductions in TIR.
The proprietary AM200 coating increases tool life up to 25% above competitors premium coatings.
GEN3SYS Replaceable Tip Drilling System is backed by our highly experienced technical staff.
The unique design of the GEN3SYS High Penetration Drilling System increases hole quality, surface finish, and true position when compared to other competitive products.
The helical margin design of the GEN3SYS enables maximum durability and Stability when cutting forces are applied.
| Flute Type | Helical |
| Body Length | 115.3mm |
| Drill Length Type | 5xD |
| Series | 16 Series |
| Drilling System | Gen3Sys\u00ae |
| Maximum Drilling Depth | 85mm |
| Product Type | Holders |
| Overall Length | 165.3mm |
| MFR Part No. | 60516H-20FM |
| Coolant Delivery | Coolant Through |
| Shank Length | 50mm |
| Shank Diameter | 20mm |
| Pipe Tap Size | 1/8in |
| Shank Type | Flanged Straight |
