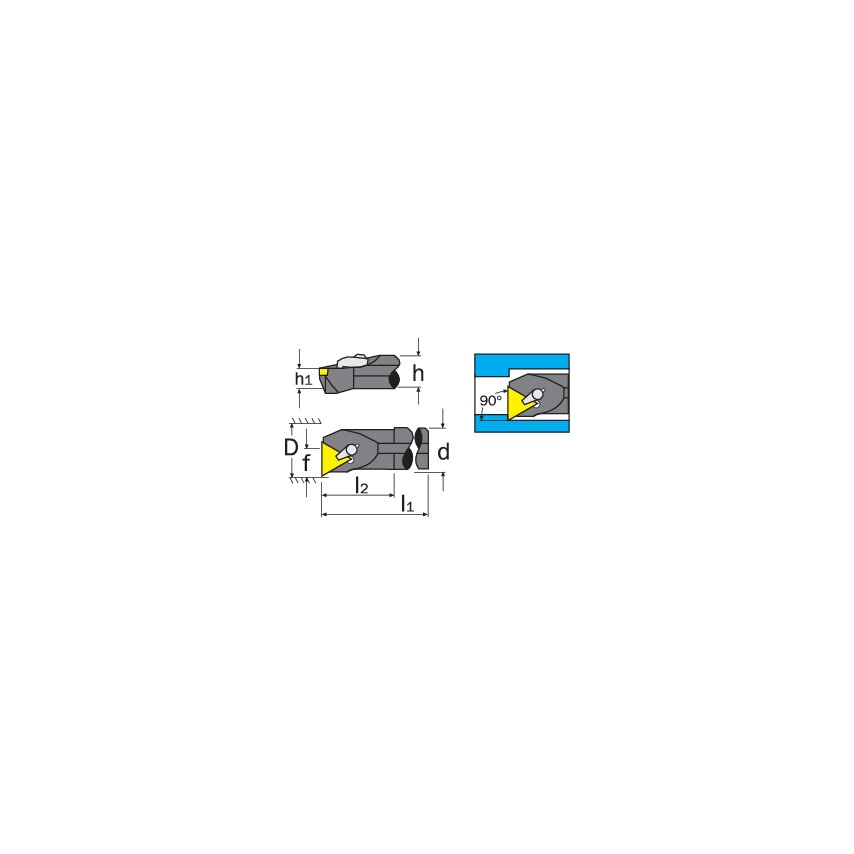

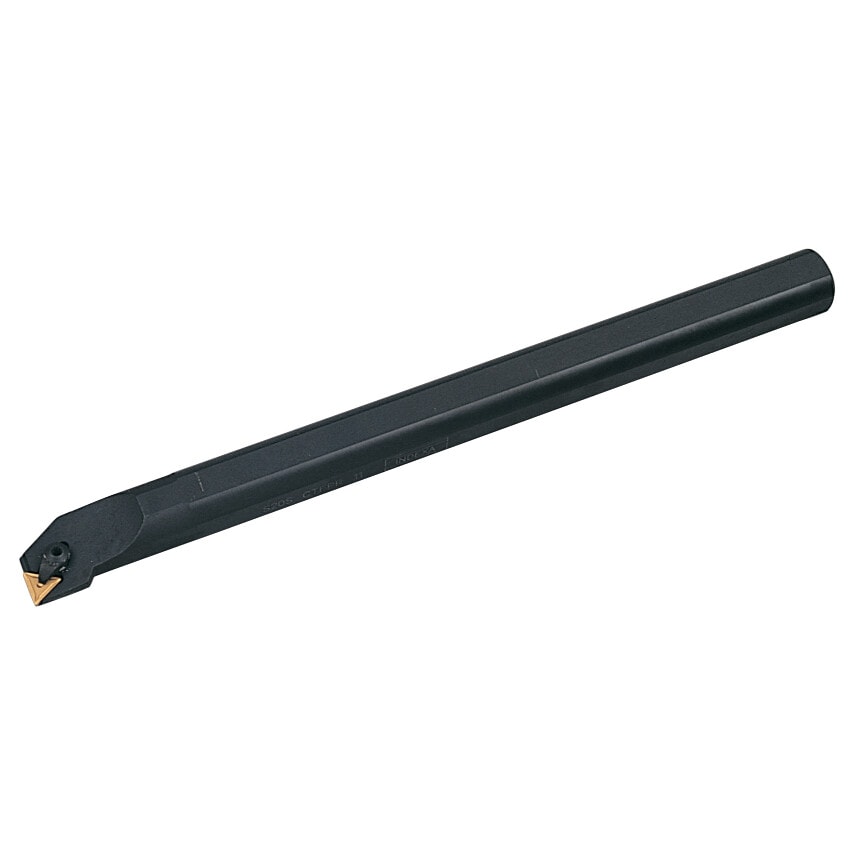

75 approach for 11 positive square inserts.
| Clearance Angle | 11\u00b0 |
| Insert Holding Type | Top Clamp |
| Shank Height (h) | 30mm |
| Approach Angle | 90\u00b0 |
| Cutting Direction | Right Hand |
| Centre To Cutting Tip | 22mm |
| MFR Part No. | S32U-CTFPR16 |
| Toolholder Style | CTFP |
| Neck Length (l2) | 50mm |
| Coolant Delivery | External |

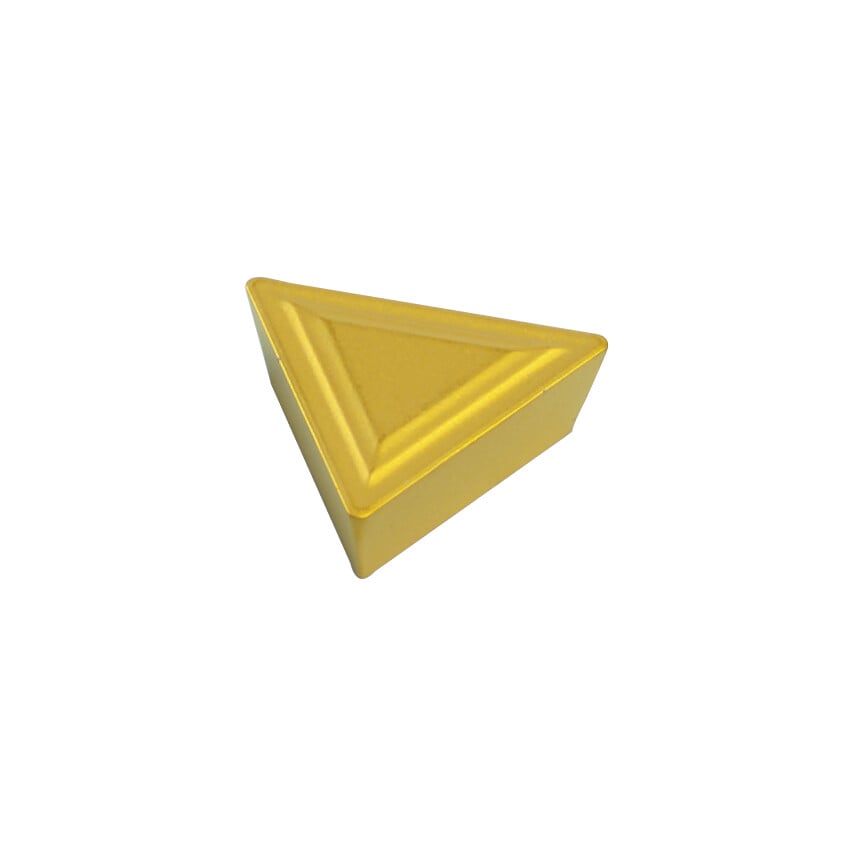

| Insert Style | TP_N | TP_R |
| ISO Designation | CTFPR 16 |
| Set Type | Individual Boring Bar |
| Insert Cutting Edge Length | 16mm |
| Shank Diameter (d) | 32mm |
| Cutting Height (h1) | 15mm |
| Insert Inscribed Circle | 9.53mm |
| Minimum Bore Diameter (D) | 39mm |
| Insert Shape | Triangle |
| Insert Size | 1603 |
| Overall Length (l1) | 350mm |
| Shank Material | Steel |
