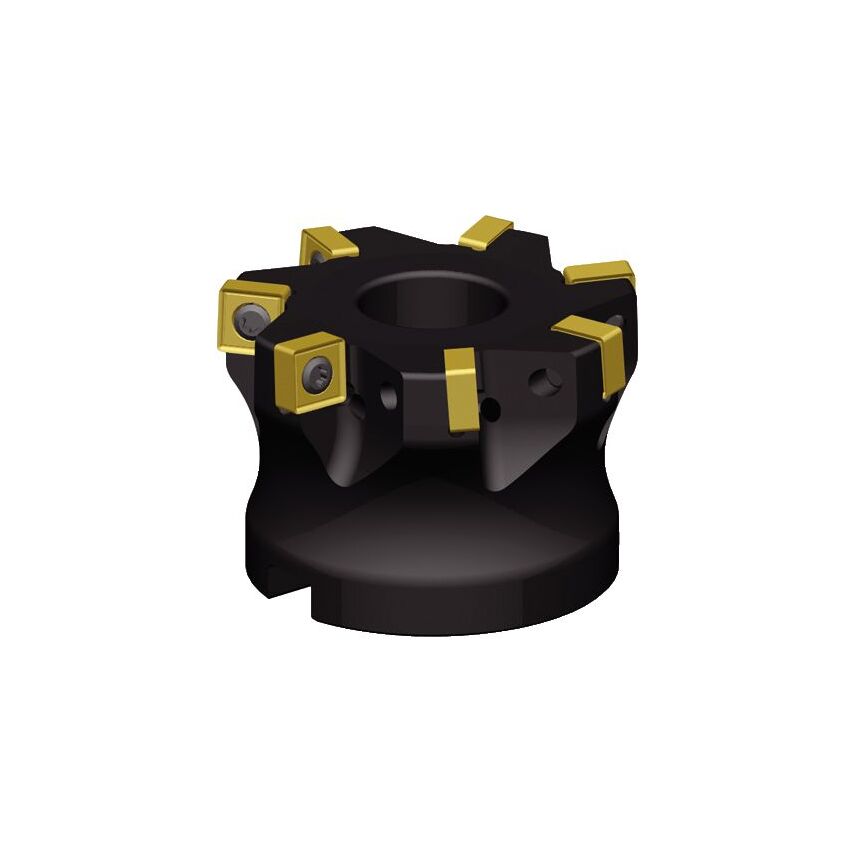

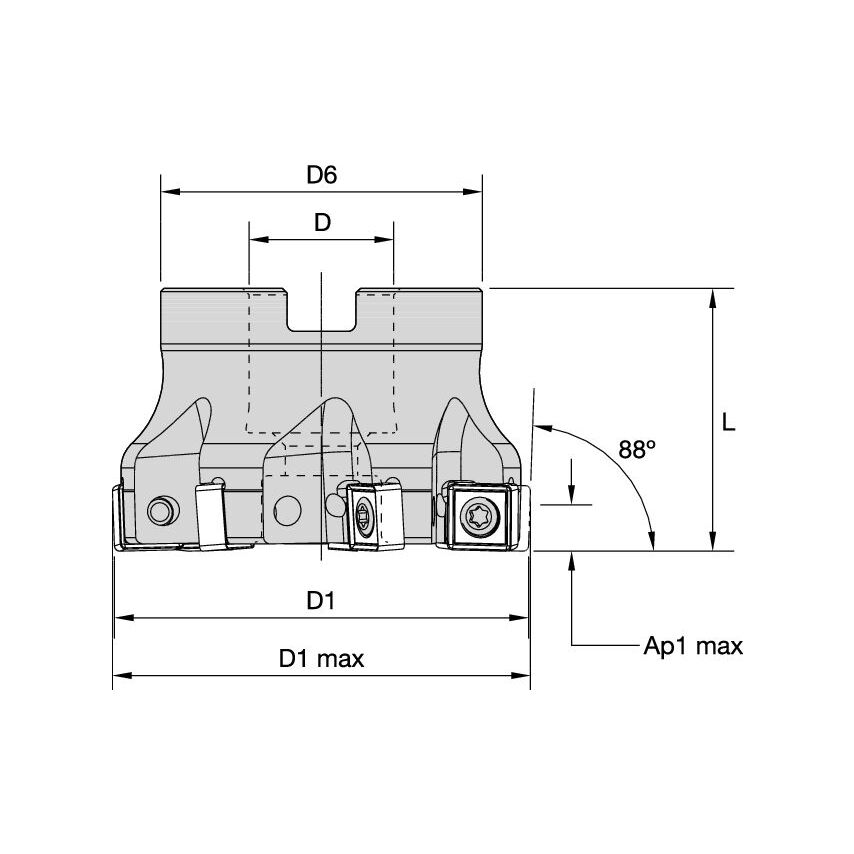

Indexable Face MillsKSSM8+ IC 10mm
| Insert Shape | S-Square 90 |
| Max. Depth of Cut | 9.1600mm |
| Body Material | Steel |
| Milling Application | Face Mill |
| Unit Measured | Metric |
| Coolant Supplied | Yes |
| Number of Inserts | 11 |
| Center Cutting Tool | No Center Cutting |
| Number of Flutes | 11 |
| Hub Diameter | 78mm | 78.0000mm |
| Adapter Type Machine Side | Shell Mill |
| Body Diameter Max | 97.86mm |
| Hand Preference | Right |
| Maximum Cutting Diameter | 100.64mm |
| Clamp Type | Screw Clamping |
| MFR Part No. | 5420250 |
