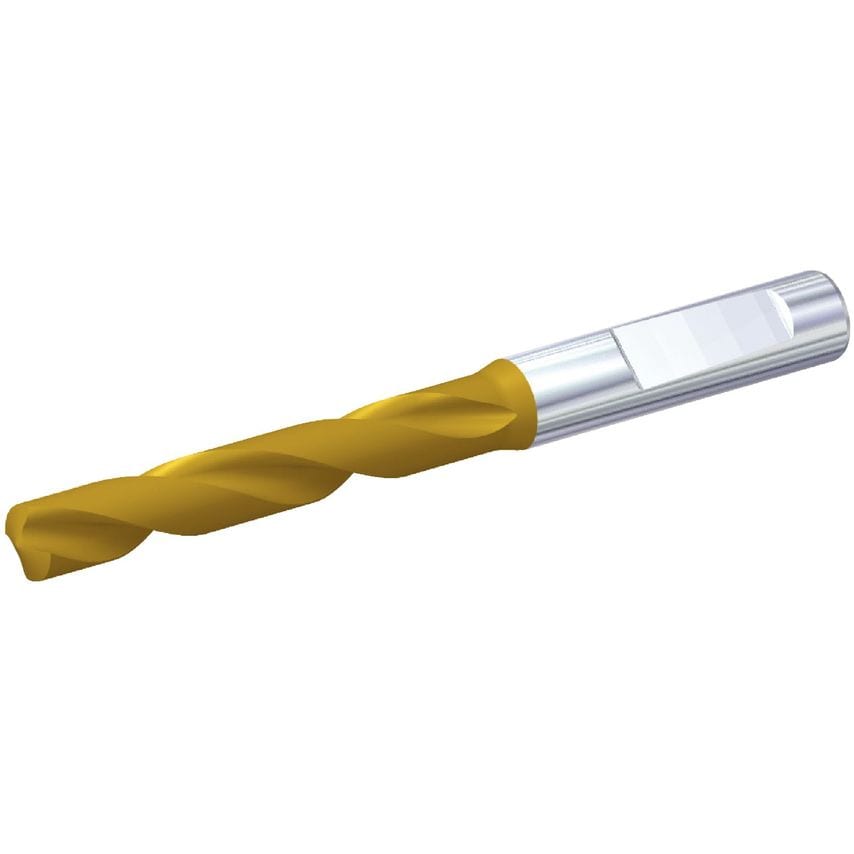

GOdrill Wide Range of MaterialsSolid Carbide Drills
| Finish/Coating | TiN |
| Hand Preference | Right |
| Material | Carbide |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Functional Length | 121.6400mm |
| Primary Material | Steel |
| Drill Point | 2.36mm |
| MFR Part No. | 4151017 |
| Adapter Style | Whistle Notch 2 CylindricalEnd |
| Assembly Length | 74.64mm |
| Overall Length | 124mm | 124.0000mm |
| Coolant Supplied | No |
| Flute Length | 77mm | 77.0000mm |
| Number of Flutes | 2 |
| Helix Type | Right Hand Helix/Flute |
| Flute Construction | Helical Flute |
| Drill Diameter | 13.7000mm |
| Unit Measured | Metric |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
| Helix Angle | 28.797 |
| Adapter Type | Cylindrical |
| Drill Depth | 60mm | 60.0000mm |
| Shank Length | 45.0000mm |
| Clamping Length | 45mm |
