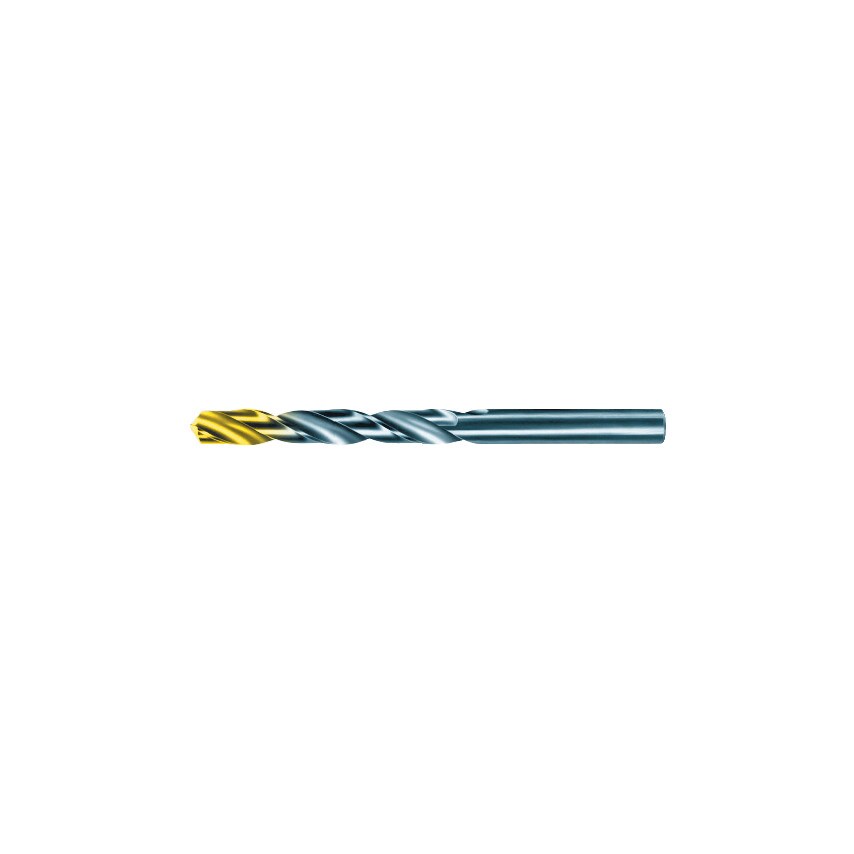

Guhring Series 9651 HSS TiN Tip Drills general purpose drills offer a longer tool life thanks to the TiN coted tip. Especially suitable for the machining of steel and cast steel (alloyed and unalloyed), grey cast iron, malleable cast iron, spheroidal graphite iron, sintered iron and graphite with high concentricity characteristics.
Features and Benefits
High speed steel construction for durability
TiN coated tip for increased tool life and performance
Ideal for drilling a range of materials including cast steel and iron
Standards
Manufactured to BS 328/DIN 338RN
Typical Applications
Steel
Steel alloys
Cast iron
Spheroidal graphite iron
Sintered iron
Graphite
Notes
Available in metric sizes 1.0mm - 16.0mm
| MFR Part No. | 09651 008.400 |
| Finish/Coating | TiN |
| Web Thickness | Similar to Form C |
| Flute Construction | Ground flutes |
| Product Type | Drills |
| Standards Met | DIN 338 |
| Series | 9651 |
| Helix Type | Normal Helix |
| Shank Diameter Tolerance | F11 |
| Overall Length | 117mm |
| Drill Diameter | 8.4mm |
| Point Angle | 118\u00b0 |
| Point Type | Conventional |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
| Material | HSS |
| Drill Diameter Metric | 8.4mm |
| Coolant Delivery | External |
| Drill Diameter Tolerance | H8 |
| Flute Type | Spiral |
| Flute Length | 75mm |
