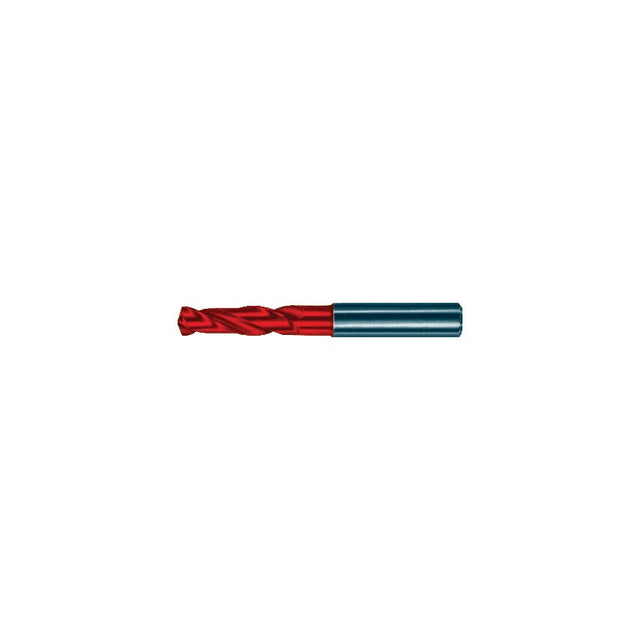

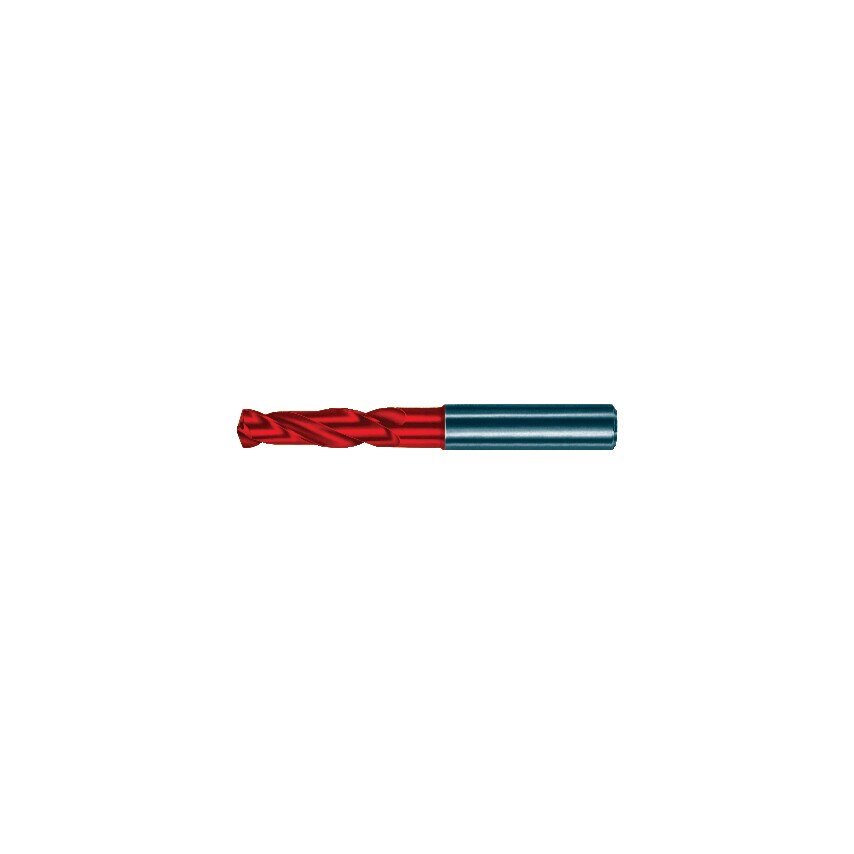

5510 11.80MM Carbide Straight Shank Ratio Drill - FIREX Coated

Guhring  |  SKU: ZT1391330X
Cash
£120.99
Standard price
Pro
£117.36
With tools.com Pro
Finance
£2.49
/week
Approx. See your options
Save on every purchase
Theft replacement plan
With a hard carbide construction and a durable FIREX coating with excellent heat and wear resistance, the Guhring 5510 Series is ideal for the drilling of long and short-chipping materials. Effecitive on structural and case hardened steels, cast steels, heat-treatable steels and alloyed steels with a tensile strength of up to app. 1200N/mm2, including carbon steels, bronze, cast iron and high alloyed AISi-alloys. Features and Benefits Hard carbide construction for added strength and rigidity FIREX coating for improved heat and wear resistance Ideal for drilling long and short chipping materials Specifications Self centering 3xD Concave cutting point geometry and web thinning. 140 Point angle Diameter tolerance m7 Shank tolerance h6 Manufactured to DIN 6537 Sizes 3.00mm to 20.00mm Typical Applications Case hardened steel Steel Structural steel Alloyed steels Bronze Cast iron
Number of Flutes 2
Flute Type Spiral
Cutting Direction Right Hand
Point Angle 140\u00b0
ISO Category Grade K | P
Shank Diameter 12mm
Diameter x Depth 3xD
Drill Diameter 11.8mm
Shank Diameter Tolerance H6
Helix Type Normal Helix
Drill Diameter Metric 11.8mm
ISO Category K | P
Carbide Drill Type Carbide High Performance
Drill Diameter Tolerance M7
Material Carbide
Overall Length 102mm
Coolant Delivery Coolant Through
Standards Met DIN 6537
Flute Length 55mm
MFR Part No. 05510 011.800
Finish/Coating FIREX\u00ae
Series 5510
