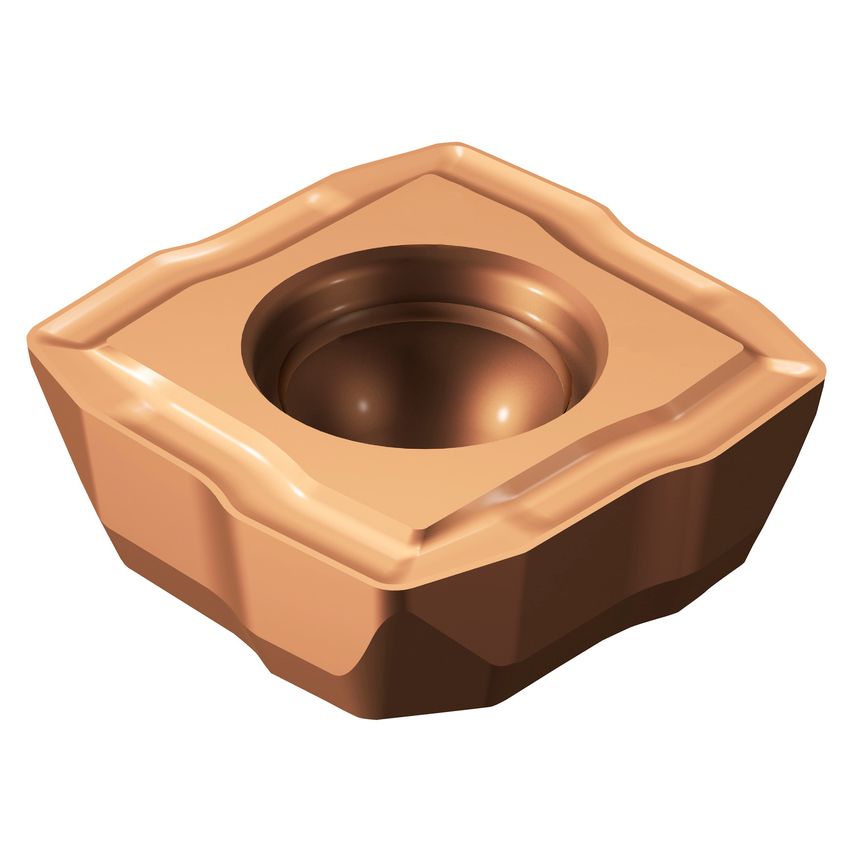

Product Range: CoroDrill 880Tool Type: Indexable drillsIndexable insert drillsFeatures & Benefits- First choice for general 2-5 DC drilling operations- Close hole tolerance and improved surface finish

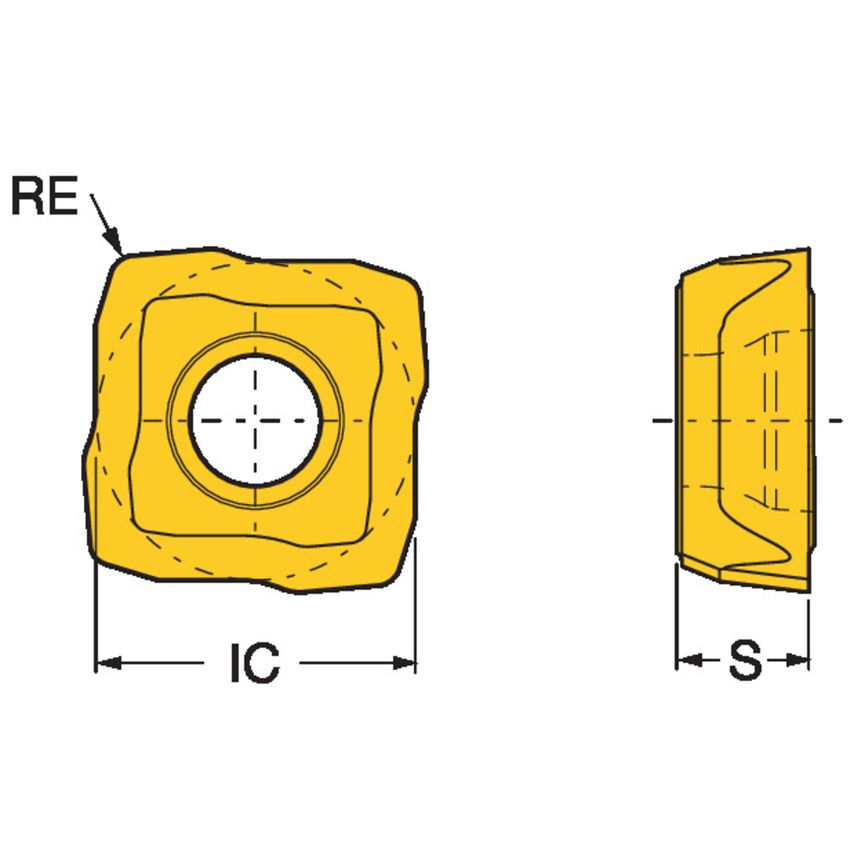

| Corner Radius | 25.4mm |
| Unit System | Metric |
| Inscribed Circle | 17.9mm |
| Insert Thickness | 5.5mm |
| Grade | 1044 |
| Insert Size/Shape | CoroDrill 880 -0906-C |
| Insert Mounting Style | Screw/Clamp |
| Weight | 21.2g |
| Coating Process Type | PVD |
| MFR Part No. | 5765637 |
| Insert Rake Angle | 15\u00b0 |
| CoroPak | 90 |
| Insert Usage Code | Central |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiAlN |
| Through Hole Function Property | Yes |
| Inscribed Circle Diameter | 17.9mm |
| Cutting Edge Count | 4 |
| Fixing Hole Diameter | 4.7mm |
