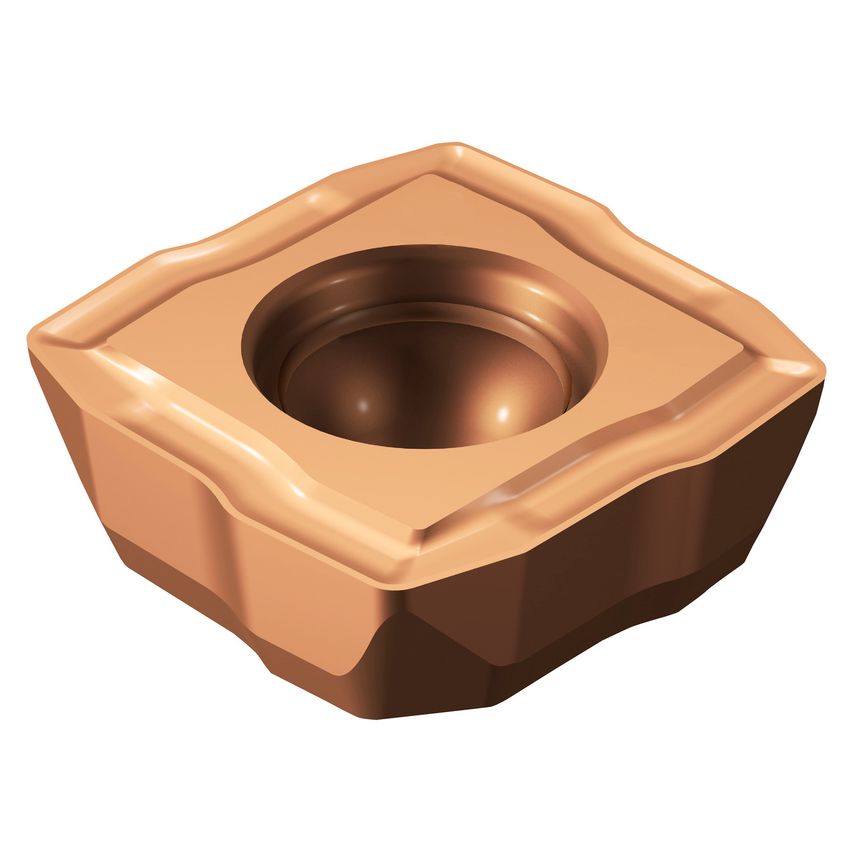

Product Range: CoroDrill 880Tool Type: Indexable drillsIndexable insert drillsFeatures & Benefits- First choice for general 2-5 DC drilling operations- Close hole tolerance and improved surface finish
| Insert Usage Code | Central |
| Weight | 1.1g |
| Inscribed Circle Diameter | 5.7mm |
| Insert Mounting Style | Screw/Clamp |
| Insert Size/Shape | CoroDrill 880 -0303-C |
| Insert Rake Angle | 15\u00b0 |
| Insert Thickness | 2.6mm |
| Corner Radius | 25.4mm |
| Grade | 1044 |
| Fixing Hole Diameter | 2.5mm |
| CoroPak | 80 |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 5765610 |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Inscribed Circle | 5.7mm |
| Cutting Edge Count | 4 |
| Unit System | Metric |
