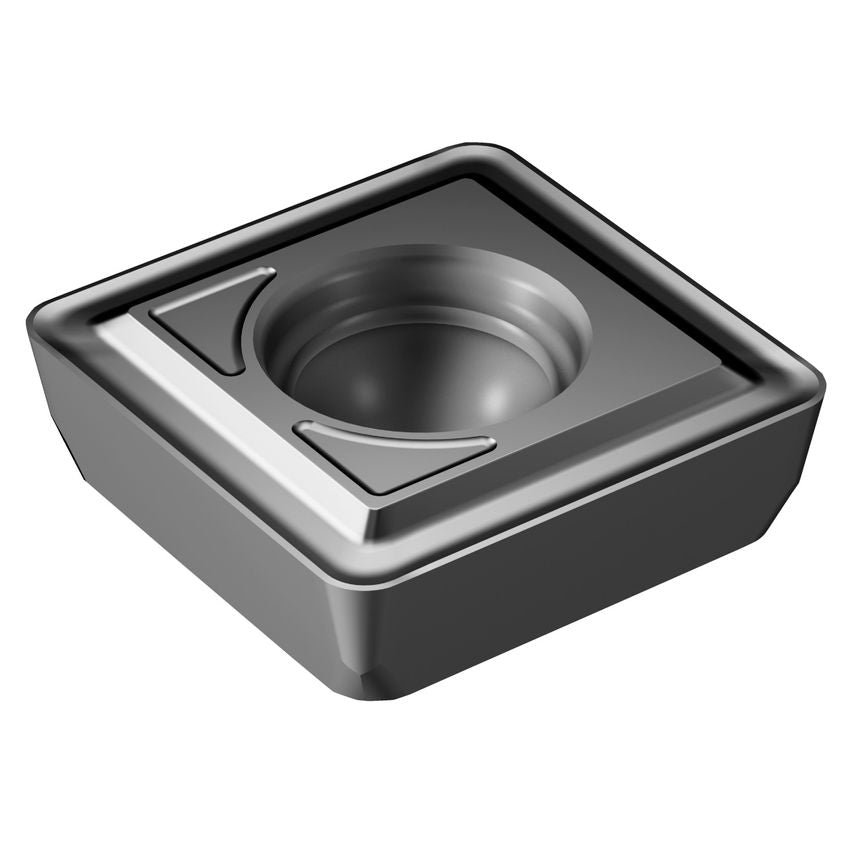

Product Range: CoroDrill 880Tool Type: Indexable drillsIndexable insert drillsFeatures & Benefits- First choice for general 2-5 DC drilling operations- Close hole tolerance and improved surface finish
| Weight | 0.8g |
| CoroPak | 83 |
| Insert Mounting Style | Screw/Clamp |
| Inscribed Circle Diameter | 6mm |
| Grade | H13A |
| Insert Thickness | 2.6mm |
| Unit System | Metric |
| ISO Cutting Tool Material | Uncoated WC grain size >=1 |
| Insert Size/Shape | CoroDrill 880 -0303-P |
| Coating Type | Uncoated |
| Coating Process Type | Uncoated |
| Insert Rake Angle | 12.5\u00b0 |
| Corner Radius | 25.4mm |
| Insert Shape | Square |
| Fixing Hole Diameter | 2.5mm |
| Through Hole Function Property | Yes |
| Inscribed Circle | 6mm |
| Cutting Edge Count | 4 |
| Insert Usage Code | Peripheral |
| MFR Part No. | 5765671 |
