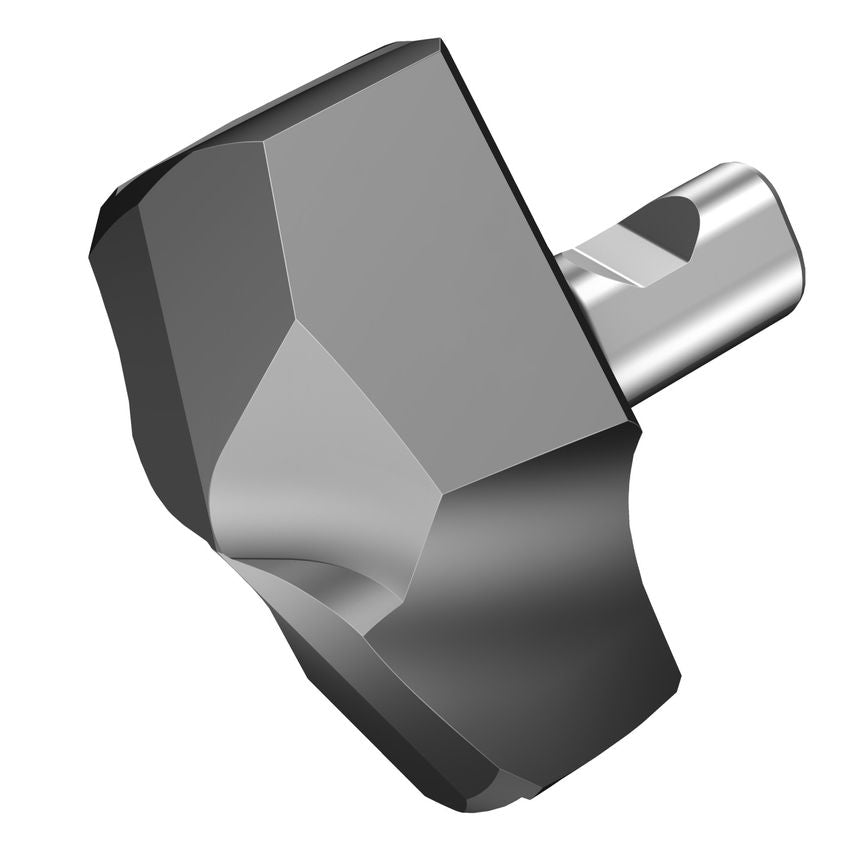

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Unit System | Metric |
| Insert Size/Shape | CoroDrill 870 - Size 16 |
| Hand Preference | Right |
| Functional Length | 0.8mm |
| Achievable Hole Tolerance | H9 |
| Point Angle | 142\u00b0 |
| Cutting Edge Count | 1 |
| CoroPak | 18.2 |
| Weight | 9.1g |
| Cutting Diameter | 100mm |
| Through Hole Function Property | Yes |
| MFR Part No. | 7357816 |
| Grade | 3334 |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Mounting Style | Clamp |
| Coating Type | AlTiCrN |
