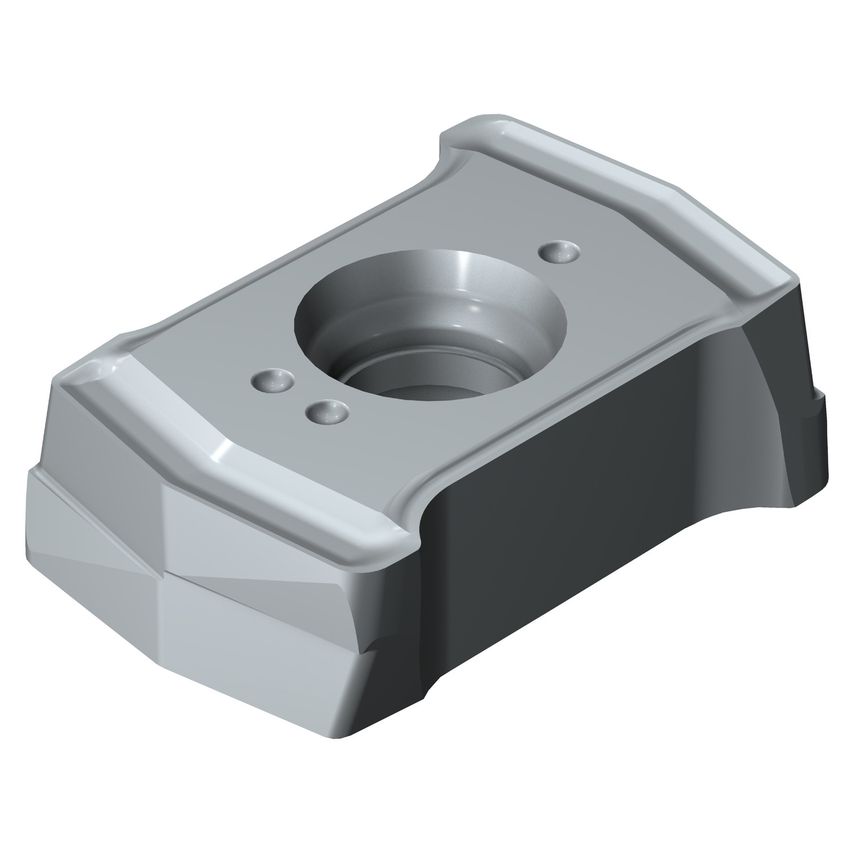

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation
| Through Hole Function Property | Yes |
| CoroPak | 19.2 |
| Cutting Edge Count | 4 |
| Grade | H13A |
| Insert Rake Angle | 2.5\u00b0 |
| Insert Length | 9.8mm |
| ISO Cutting Tool Material | Uncoated WC grain size >=1 |
| Insert Width | 6.1mm |
| Weight | 1.98g |
| Insert Size/Shape | CoroDrill DS20-0205-P |
| Unit Measured | Metric |
| Insert Mounting Style | Screw/Clamp |
| Coating Process Type | Uncoated |
| MFR Part No. | 7549905 |
| Coating Type | Uncoated |
| Corner Radius | 0.5mm |
| Insert Thickness | 3.1mm |
| Insert Usage Code | Peripheral |
