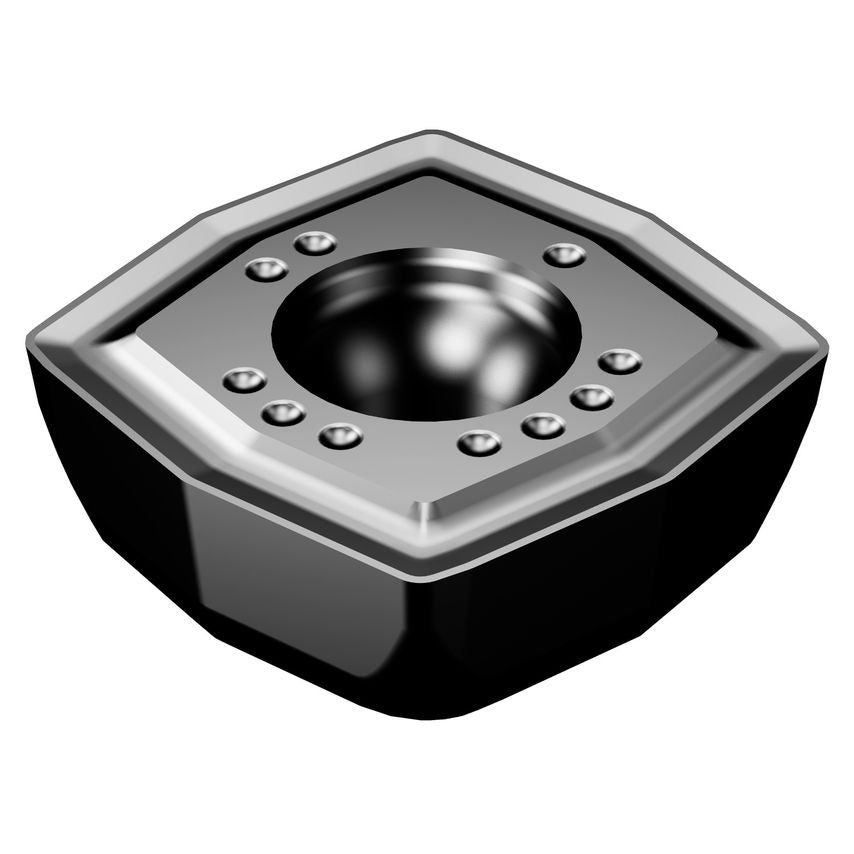

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation

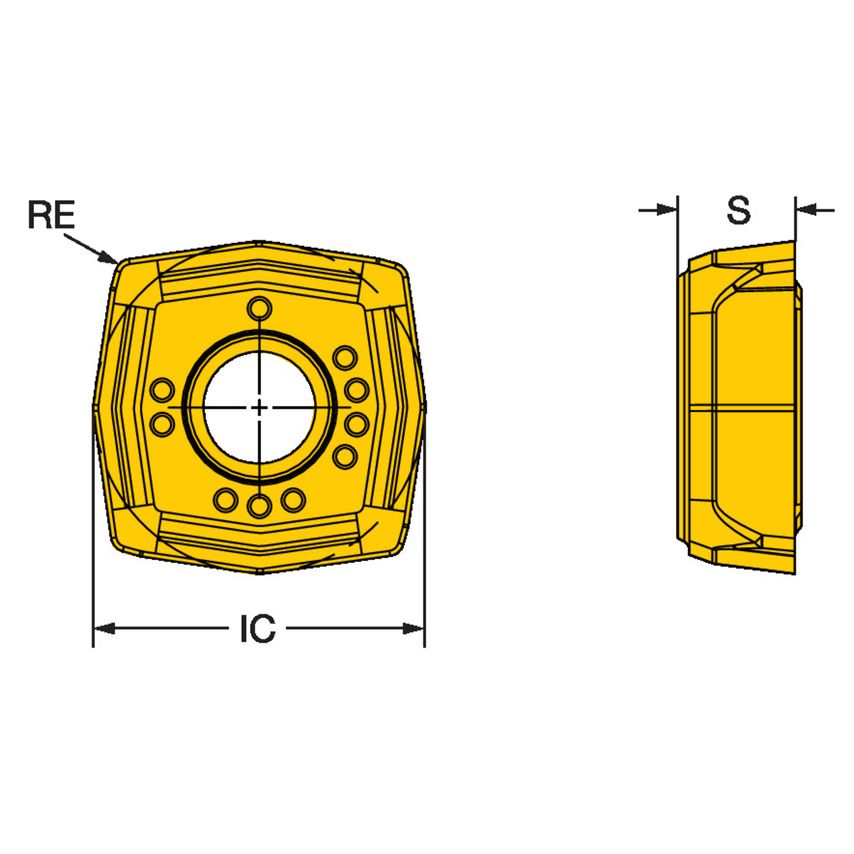

| Insert Mounting Style | Screw/Clamp |
| MFR Part No. | 7549916 |
| Inscribed Circle | 7.34mm |
| Coating Type | TiAlN |
| Insert Thickness | 2.6mm |
| Cutting Edge Count | 4 |
| Grade | 1344 |
| Coating Process Type | PVD |
| Insert Size/Shape | CoroDrill DS20-0205-C |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 19.2 |
| Inscribed Circle Diameter | 7.34mm |
| Weight | 1.39g |
| Through Hole Function Property | Yes |
| Insert Usage Code | Central |
| Corner Radius | 0.35mm |
| Unit Measured | Metric |
