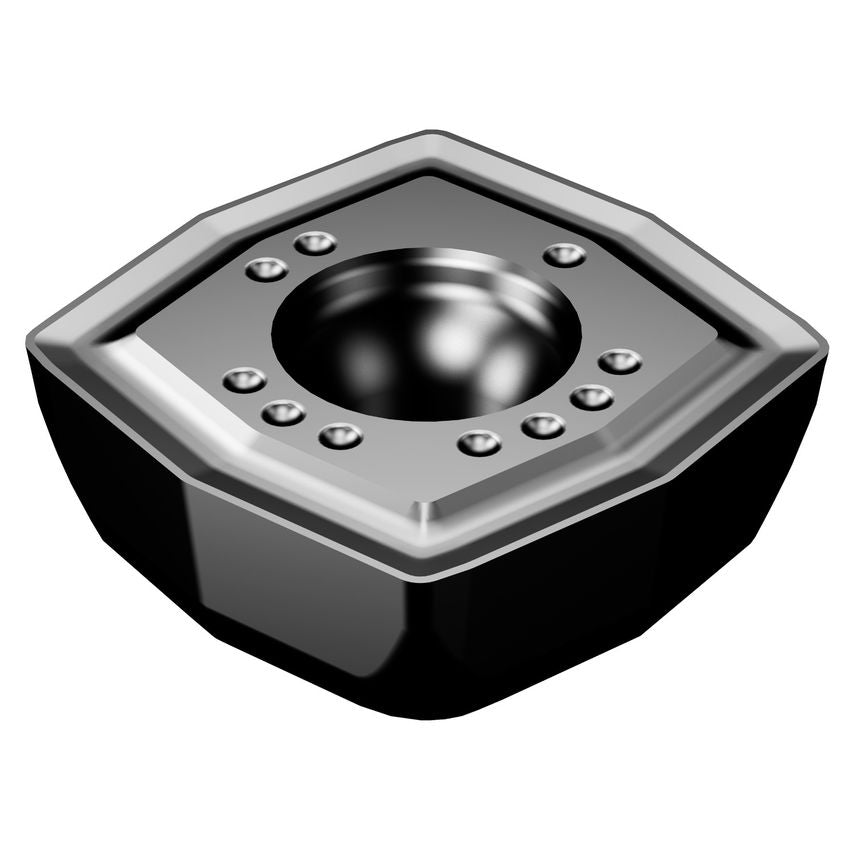

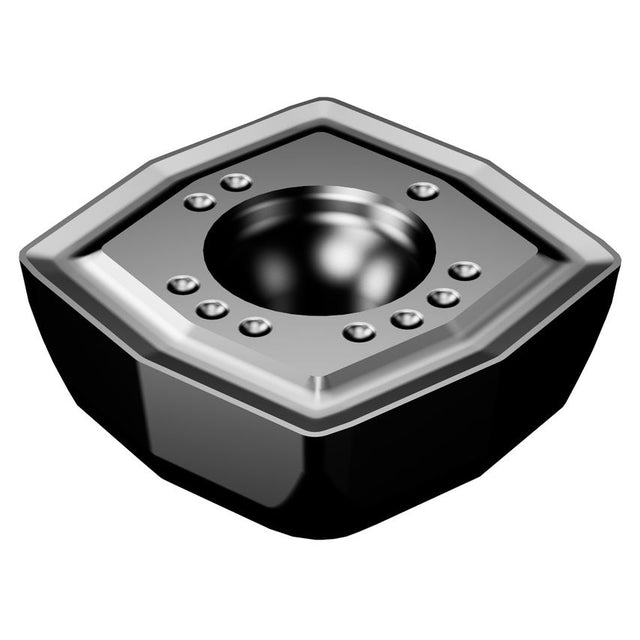

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation
| Insert Usage Code | Central |
| Cutting Edge Count | 4 |
| Insert Mounting Style | Screw/Clamp |
| Coating Type | TiAlN |
| Insert Size/Shape | CoroDrill DS20-0306-C |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Rake Angle | 0\u00b0 |
| Coating Process Type | PVD |

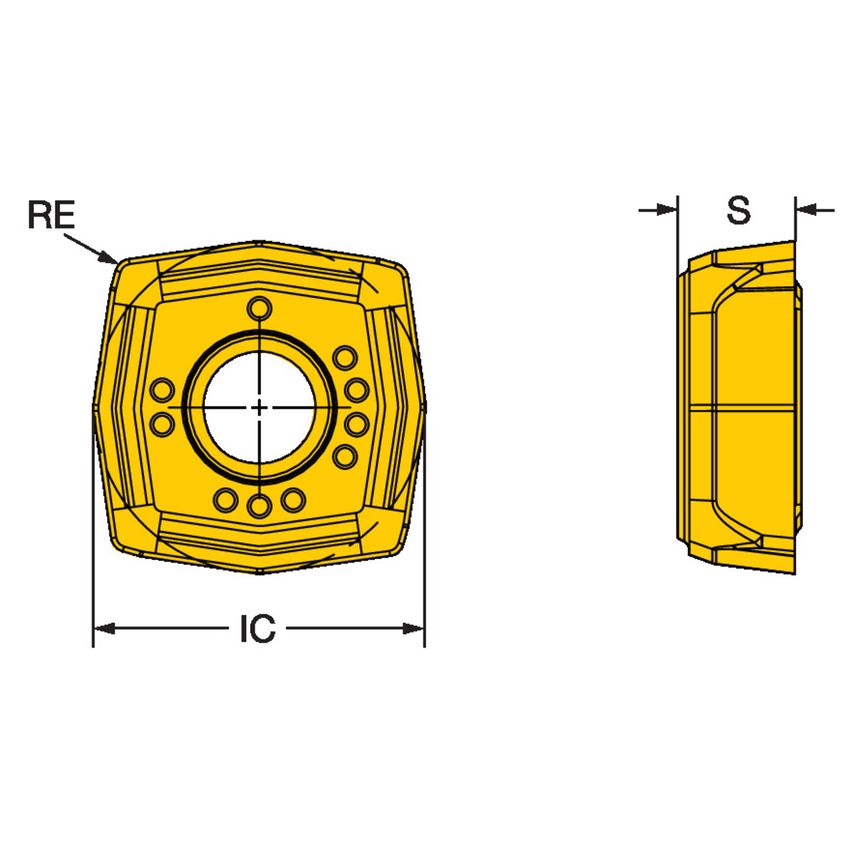

| Inscribed Circle | 8.88mm |
| Unit Measured | Metric |
| Inscribed Circle Diameter | 8.88mm |
| CoroPak | 19.2 |
| MFR Part No. | 7549933 |
| Insert Thickness | 3mm |
| Corner Radius | 0.35mm |
| Through Hole Function Property | Yes |
| Grade | 1344 |
| Weight | 2.4g |
