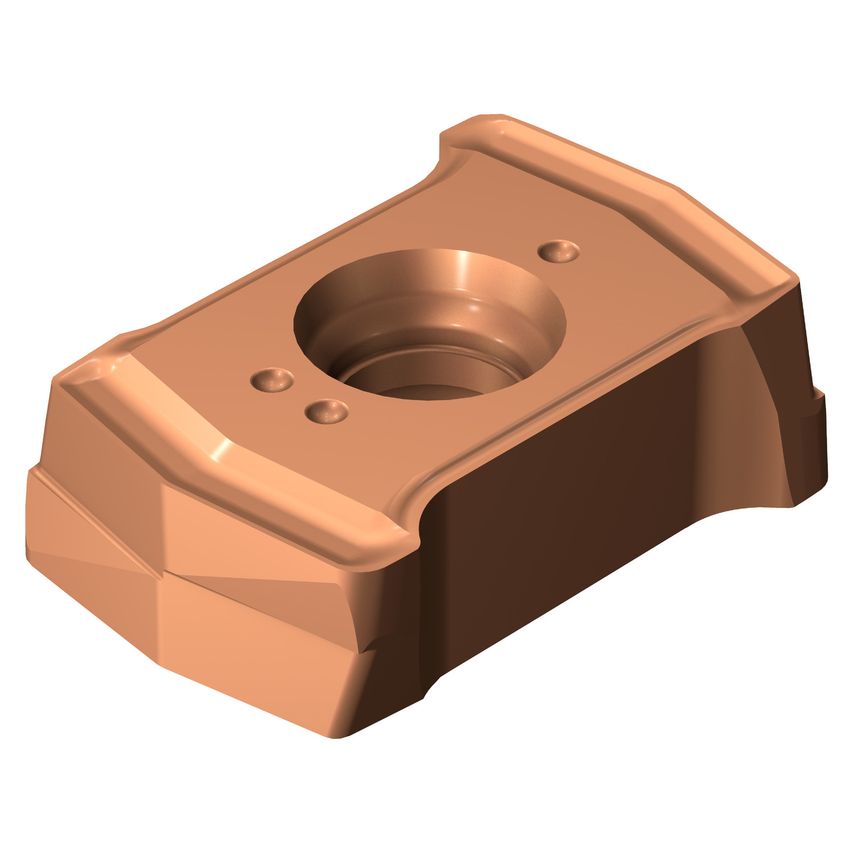

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation
| Insert Thickness | 4.25mm |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Insert Rake Angle | 2\u00b0 |
| CoroPak | 20.1 |
| Coating Type | TiAlN+TiAlN |
| Corner Radius | 0.7mm |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 7549946 |
| Insert Usage Code | Peripheral |
| Cutting Edge Count | 4 |
| Insert Length | 13.4mm |
| Grade | 2044 |
| Insert Mounting Style | Screw/Clamp |
| Insert Width | 9.29mm |
| Insert Size/Shape | CoroDrill DS20-0407-P |
| Weight | 6.1g |
