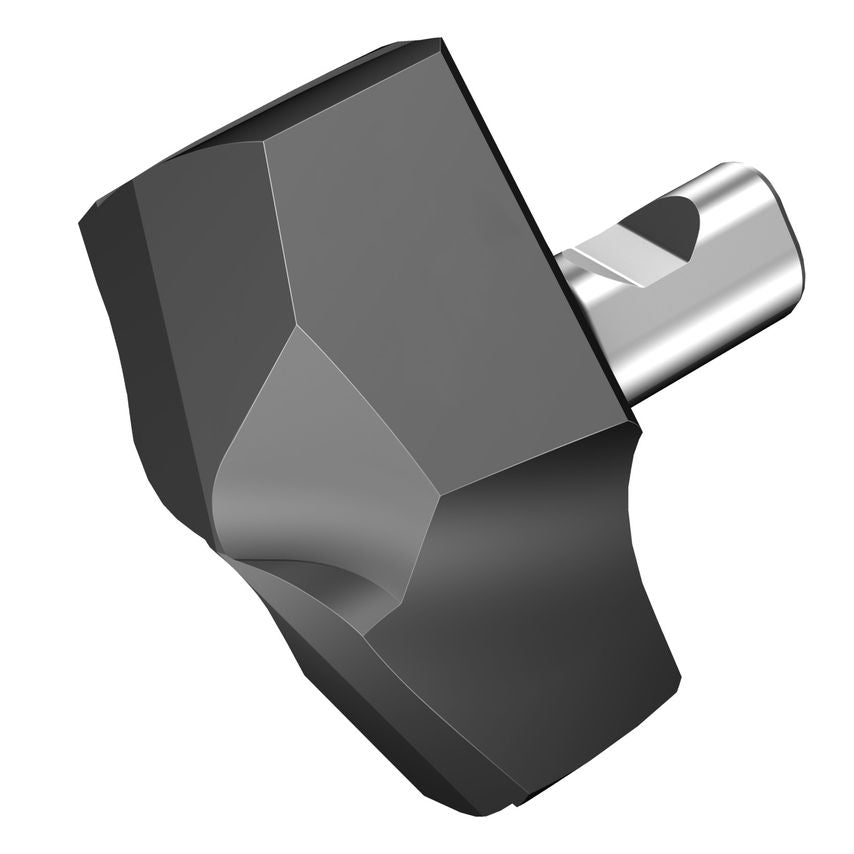

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Achievable Hole Tolerance | H9 |
| Cutting Diameter | 22mm |
| Functional Length | 82mm |
| Coating Type | AlTiCrN |
| Coating Process Type | PVD |
| Insert Mounting Style | Clamp |
| Insert Size/Shape | CoroDrill 870 - Size 19 |
| Hand Preference | Right |
| Through Hole Function Property | Yes |
| Grade | 2334 |
| CoroPak | 150 |
| Unit System | Metric |
| Point Angle | 142\u00b0 |
| Weight | 20g |
| Cutting Edge Count | 1 |
| MFR Part No. | 7357946 |
| ISO Cutting Tool Material | Coated WC or Cermet |
