£1.88

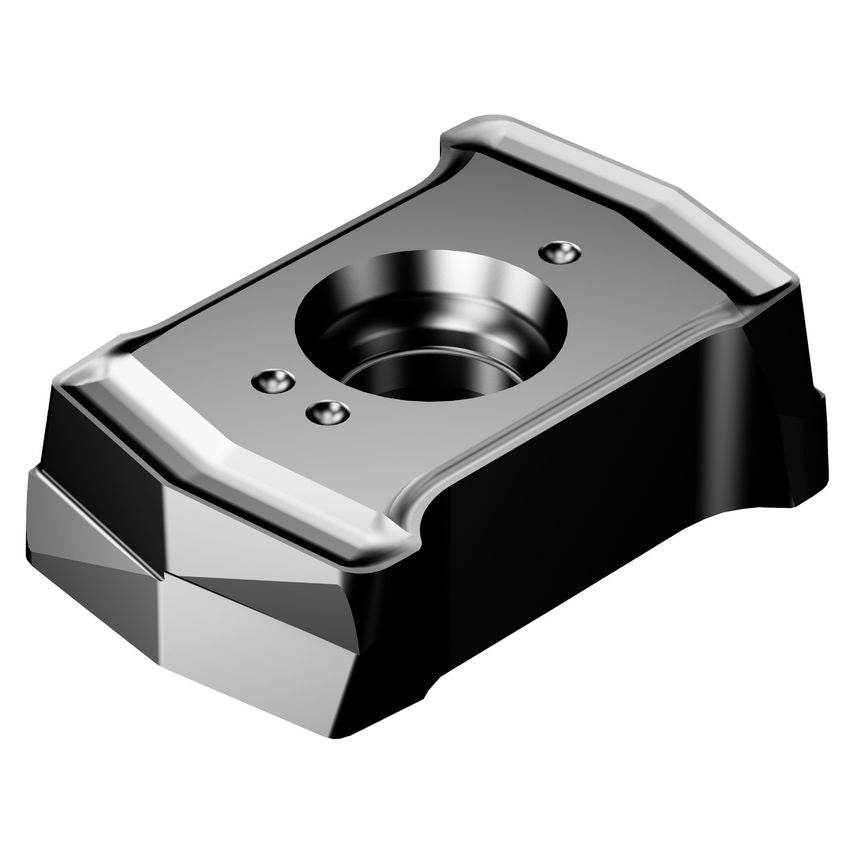

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation
CoroPak | 19.2 |
Coating Type | TiAlN |

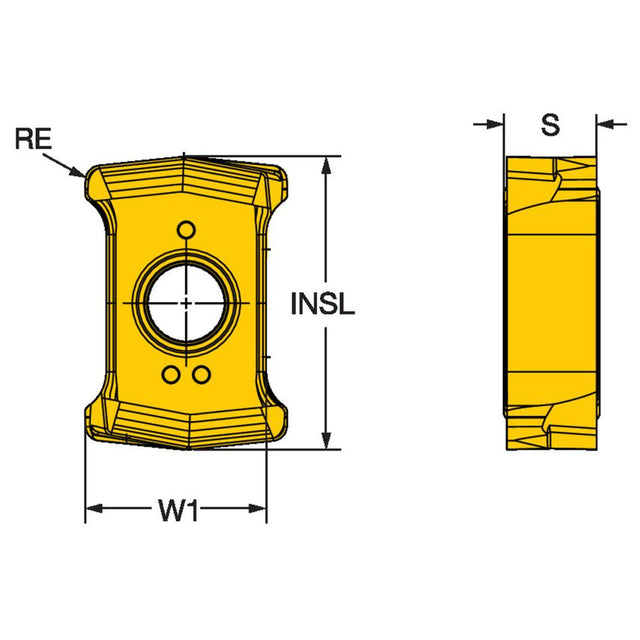

Insert Length | 15.2mm |
Insert Mounting Style | Screw/Clamp |
MFR Part No. | 7549955 |
Coating Process Type | PVD |
Insert Thickness | 4.75mm |
Insert Rake Angle | 2.5\u00b0 |
Insert Size/Shape | CoroDrill DS20-0508-P |
Grade | 4344 |
Cutting Edge Count | 4 |
Unit Measured | Metric |
Through Hole Function Property | Yes |
Weight | 9.06g |
Insert Width | 11.26mm |
ISO Cutting Tool Material | Coated WC or Cermet |
Insert Usage Code | Peripheral |
Corner Radius | 0.8mm |
