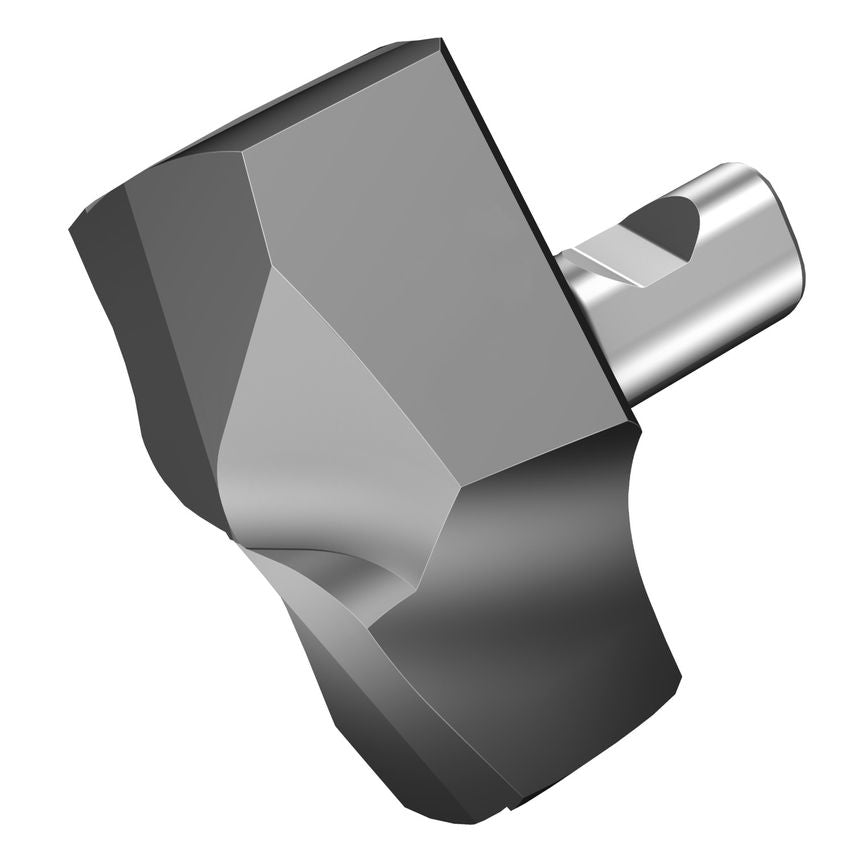

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Insert Size/Shape | CoroDrill 870 - Size 19 |
| Functional Length | 1mm |
| Insert Mounting Style | Clamp |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Cutting Diameter | 23mm |
| Cutting Edge Count | 1 |
| Point Angle | 152\u00b0 |
| CoroPak | 150 |
| Achievable Hole Tolerance | F9 |
| MFR Part No. | 7357954 |
| Through Hole Function Property | Yes |
| Hand Preference | Right |
| Weight | 15g |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit System | Metric |
| Grade | 4334 |
