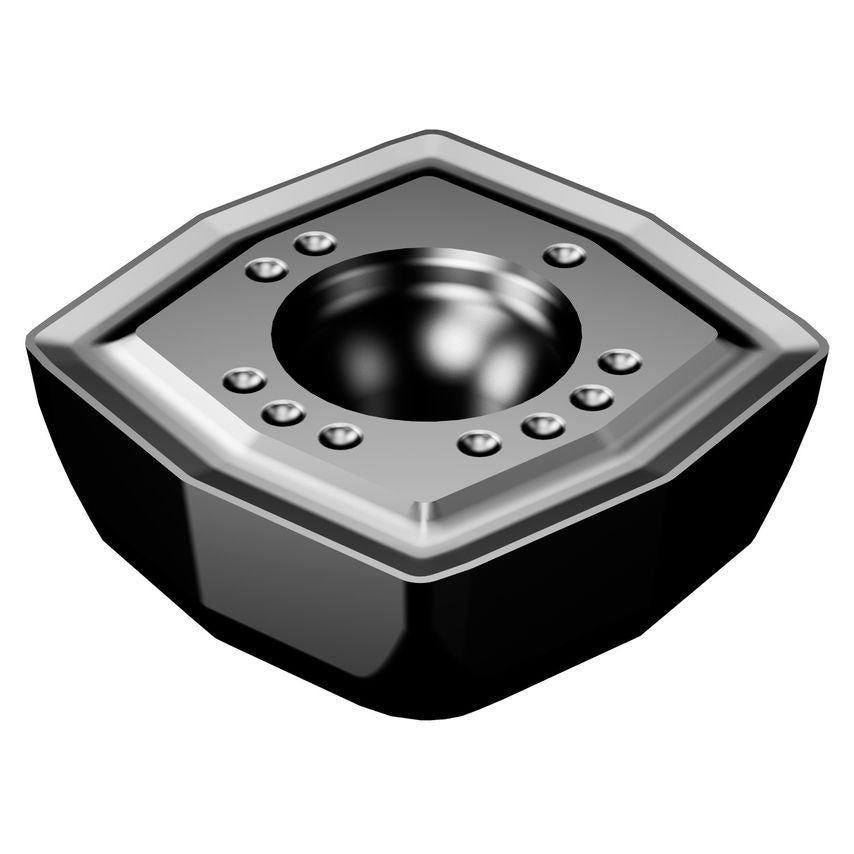

CoroDrill DS20 Insert for Drilling DS20-0508-C-M71344

Sandvik Coromant  |  SKU: ZT2641675S
Cash
£62.69
Standard price
Pro
£60.81
With tools.com Pro
Finance
£1.29
/week
Approx. See your options
Save on every purchase
Theft replacement plan
Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation
ISO Cutting Tool Material Coated WC or Cermet
Grade 1344
Coating Process Type PVD

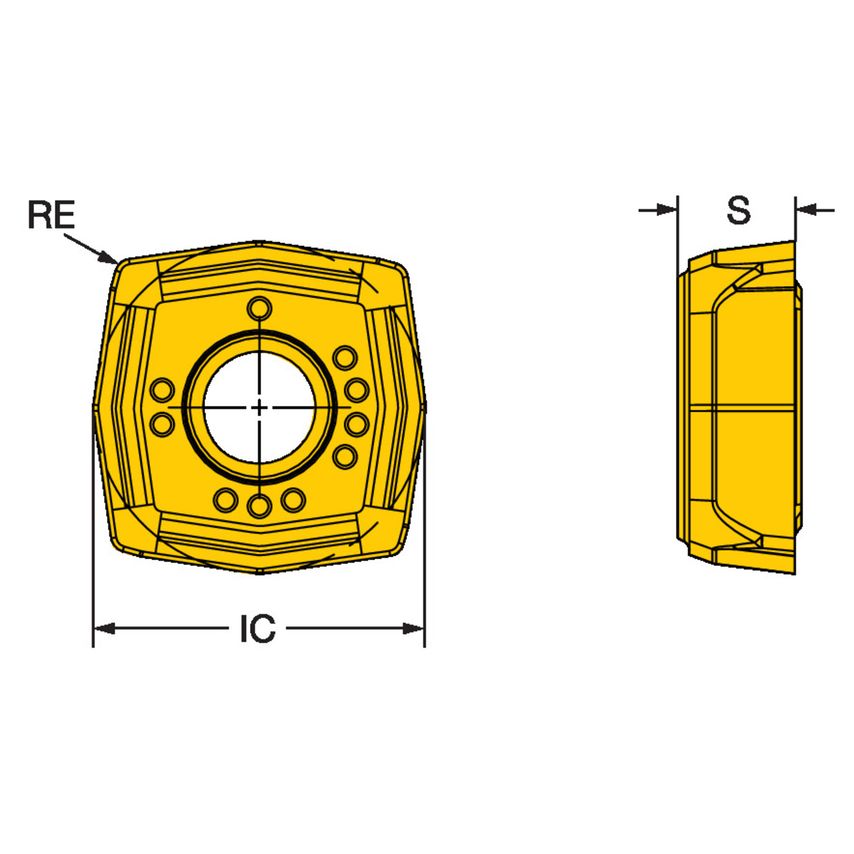

Insert Size/Shape CoroDrill DS20-0508-C
Through Hole Function Property Yes
Insert Rake Angle 0\u00b0
Inscribed Circle 13.36mm
Insert Mounting Style Screw/Clamp
Insert Thickness 3.5mm
Unit Measured Metric
Corner Radius 0.35mm
Cutting Edge Count 4
Insert Usage Code Central
CoroPak 19.2
Coating Type TiAlN
Inscribed Circle Diameter 13.36mm
Weight 6.88g
MFR Part No. 7549967
