£2.31

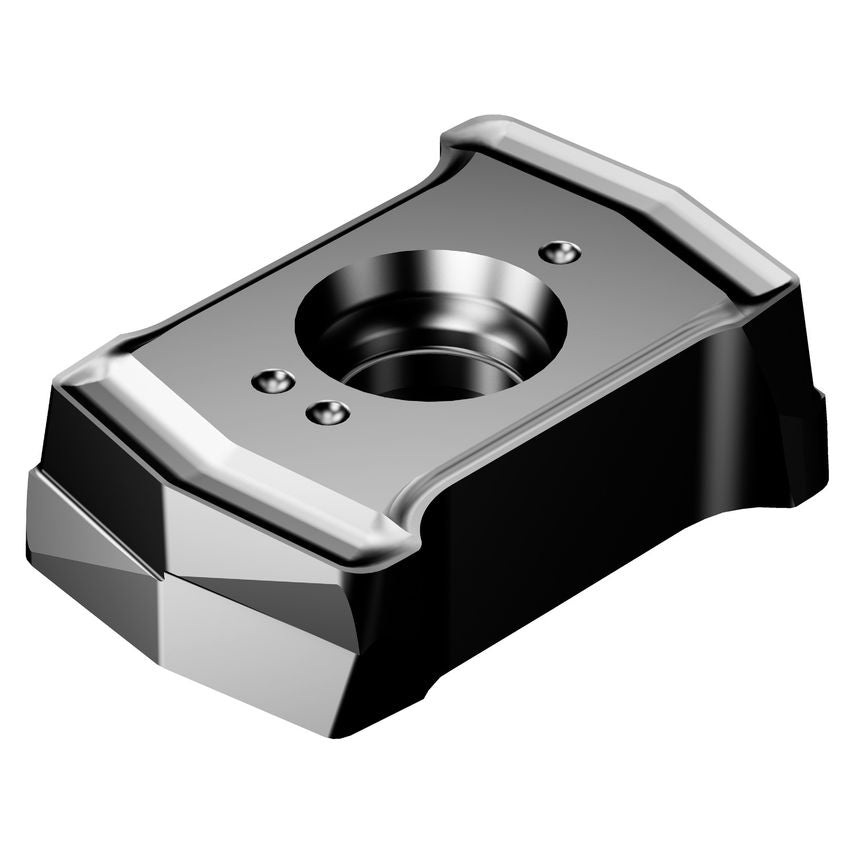

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation
Through Hole Function Property | Yes |
ISO Cutting Tool Material | Coated WC or Cermet |
Corner Radius | 0.8mm |
Unit Measured | Metric |
Coating Process Type | PVD |
Insert Usage Code | Peripheral |
Insert Rake Angle | 2\u00b0 |
Insert Mounting Style | Screw/Clamp |
Insert Length | 21.9mm |
Grade | 4344 |
CoroPak | 20.2 |
MFR Part No. | 7549994 |
Insert Size/Shape | CoroDrill DS20-0708-P |
Insert Thickness | 7mm |
Weight | 30g |
Insert Width | 18.03mm |
Coating Type | TiAlN |
Cutting Edge Count | 4 |
