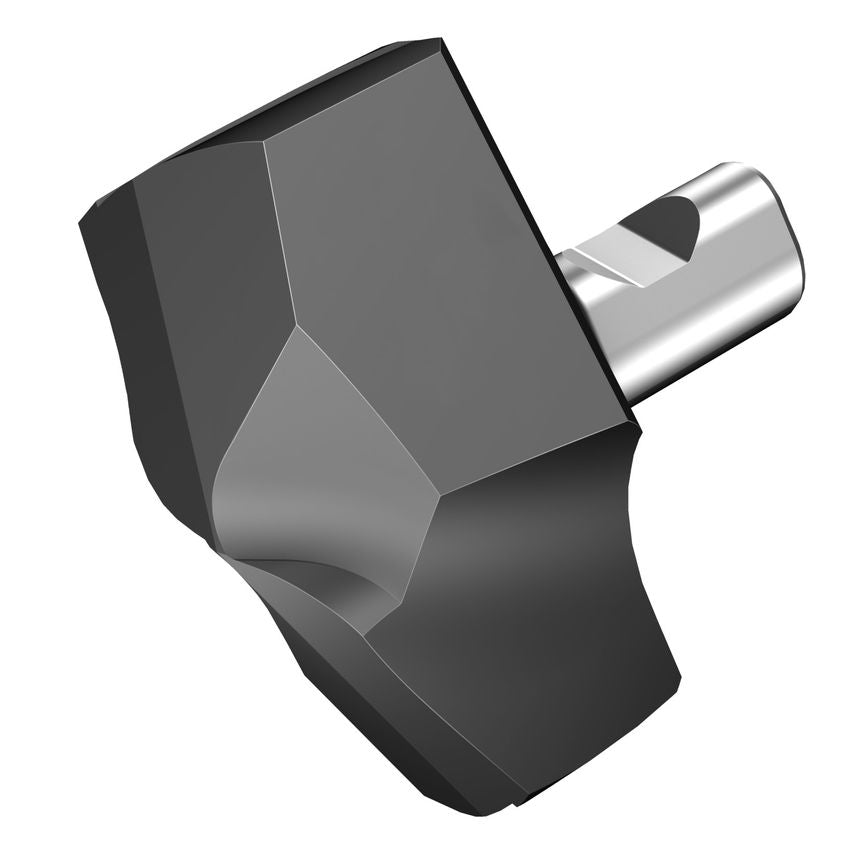

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Unit System | Metric |
| Cutting Edge Count | 1 |
| Achievable Hole Tolerance | H9 |
| Coating Type | AlTiCrN |
| Through Hole Function Property | Yes |
| Cutting Diameter | 32mm |
| Coating Process Type | PVD |
| Grade | 2334 |
| Weight | 25g |
| Hand Preference | Right |
| Insert Size/Shape | CoroDrill 870 - Size 20 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 150 |
| MFR Part No. | 7358021 |
| Functional Length | 1mm |
| Point Angle | 142\u00b0 |
| Insert Mounting Style | Clamp |
