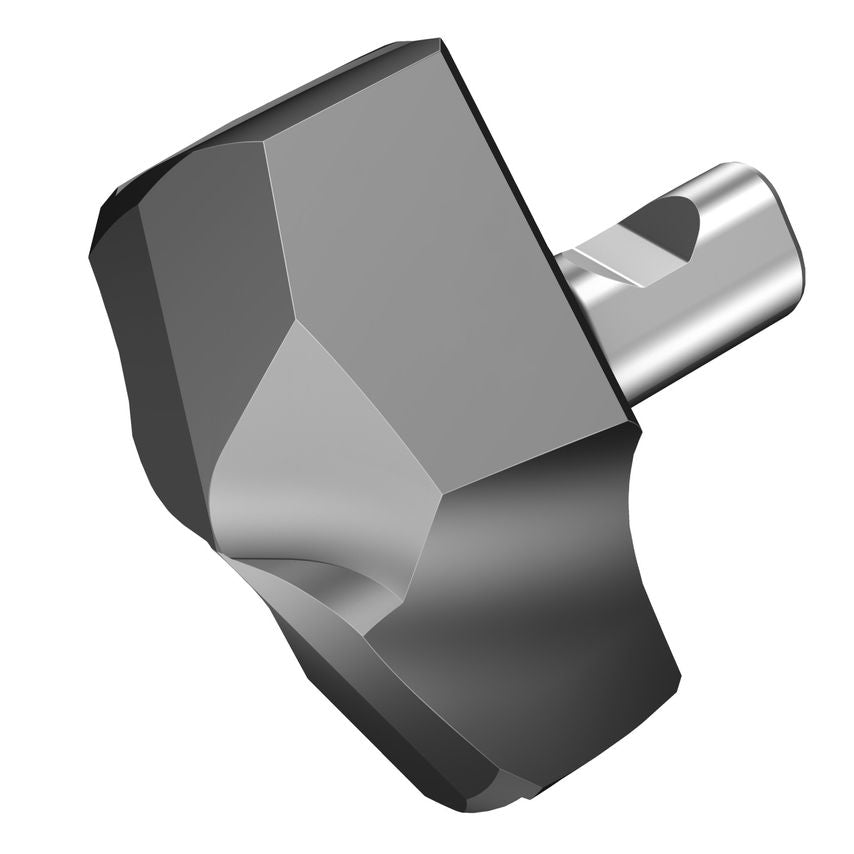

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Functional Length | 39mm |
| Unit System | Metric |
| Grade | 3334 |
| Cutting Diameter | 44mm |
| Coating Process Type | PVD |
| Hand Preference | Right |
| Insert Size/Shape | CoroDrill 870 - Size 22 |
| Point Angle | 142\u00b0 |
| CoroPak | 150 |
| Through Hole Function Property | Yes |
| Insert Mounting Style | Clamp |
| Achievable Hole Tolerance | H9 |
| Weight | 30g |
| MFR Part No. | 7358076 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlTiCrN |
| Cutting Edge Count | 1 |
