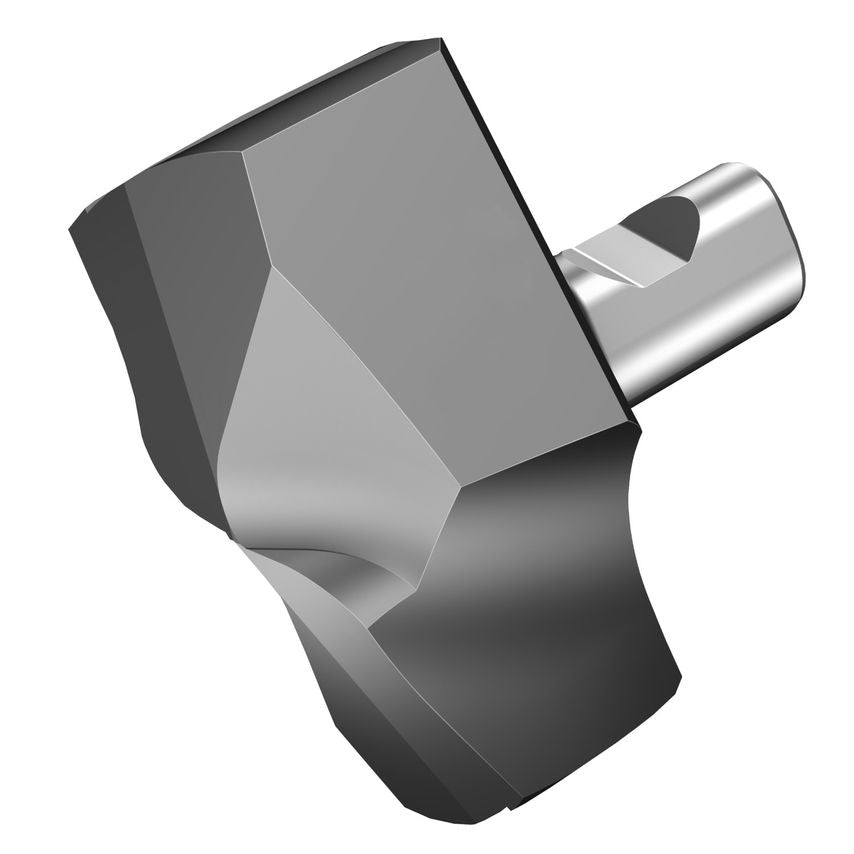

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Hand Preference | Right |
| Grade | 4334 |
| Unit System | Metric |
| Coating Process Type | PVD |
| CoroPak | 150 |
| Coating Type | TiAlN |
| Achievable Hole Tolerance | F9 |
| Cutting Diameter | 7.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 31.75mm |
| Cutting Edge Count | 1 |
| Weight | 29g |
| Point Angle | 152\u00b0 |
| Insert Size/Shape | CoroDrill 870 - Size 22 |
| Through Hole Function Property | Yes |
| MFR Part No. | 7358080 |
| Insert Mounting Style | Clamp |
