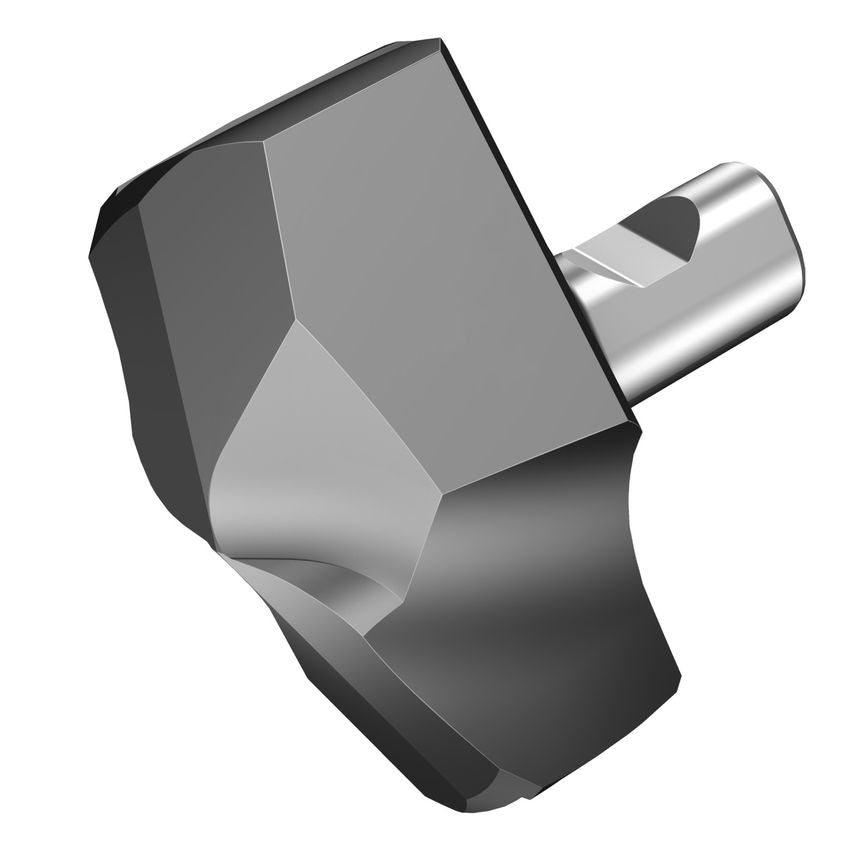

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Achievable Hole Tolerance | H9 |
| Point Angle | 142\u00b0 |
| Through Hole Function Property | Yes |
| Hand Preference | Right |
| Functional Length | 39mm |
| Coating Type | AlTiCrN |
| Weight | 31g |
| Cutting Edge Count | 1 |
| Grade | 3334 |
| MFR Part No. | 7358105 |
| Cutting Diameter | 50mm |
| Unit System | Metric |
| Coating Process Type | PVD |
| Insert Size/Shape | CoroDrill 870 - Size 22 |
| CoroPak | 150 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Mounting Style | Clamp |
