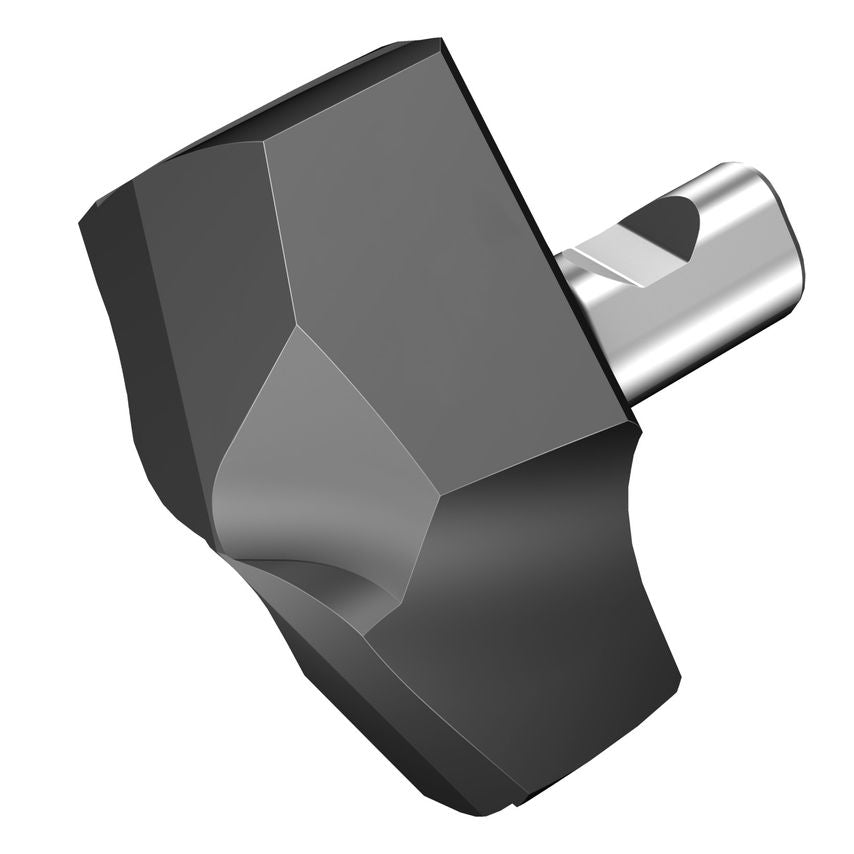

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Coating Type | AlTiCrN |
| CoroPak | 150 |
| Weight | 33g |
| MFR Part No. | 7358134 |
| Cutting Edge Count | 1 |
| Insert Mounting Style | Clamp |
| Cutting Diameter | 50mm |
| Insert Size/Shape | CoroDrill 870 - Size 23 |
| Functional Length | 31.75mm |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Hand Preference | Right |
| Grade | 2334 |
| Point Angle | 142\u00b0 |
| Achievable Hole Tolerance | H9 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Unit System | Metric |
