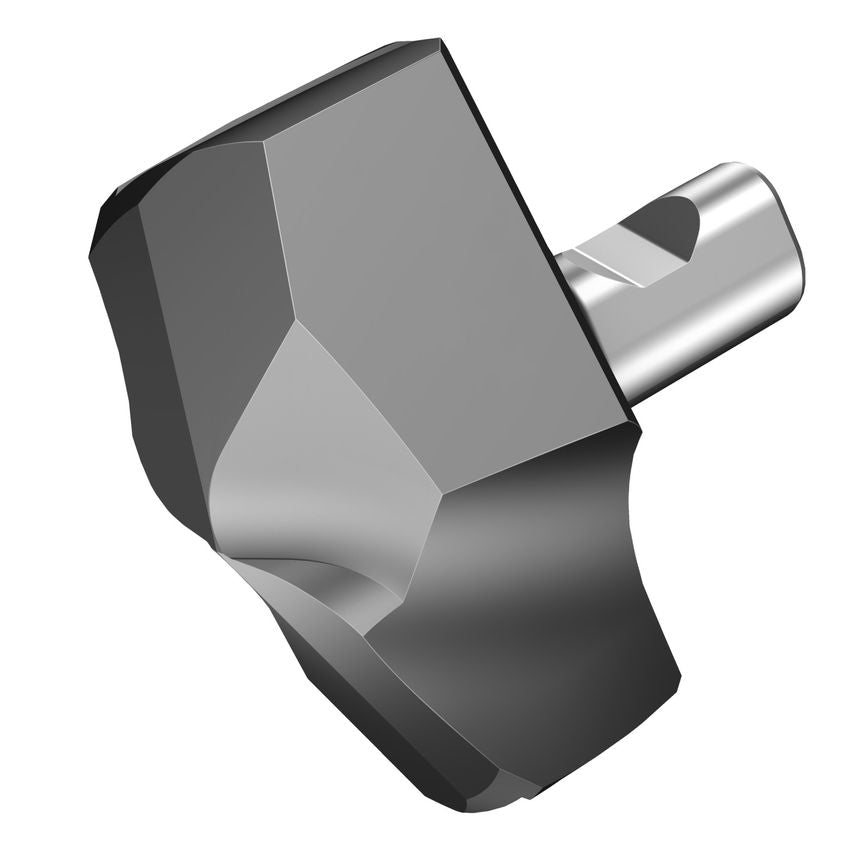

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Weight | 4g |
| Coating Type | AlTiCrN |
| CoroPak | 18.2 |
| Cutting Diameter | 25.4mm |
| Hand Preference | Right |
| Achievable Hole Tolerance | H9 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| MFR Part No. | 7357645 |
| Through Hole Function Property | Yes |
| Point Angle | 142\u00b0 |
| Unit System | Metric |
| Insert Size/Shape | CoroDrill 870 - Size 10 |
| Functional Length | 1.75mm |
| Coating Process Type | PVD |
| Insert Mounting Style | Clamp |
| Grade | 3334 |
| Cutting Edge Count | 1 |
