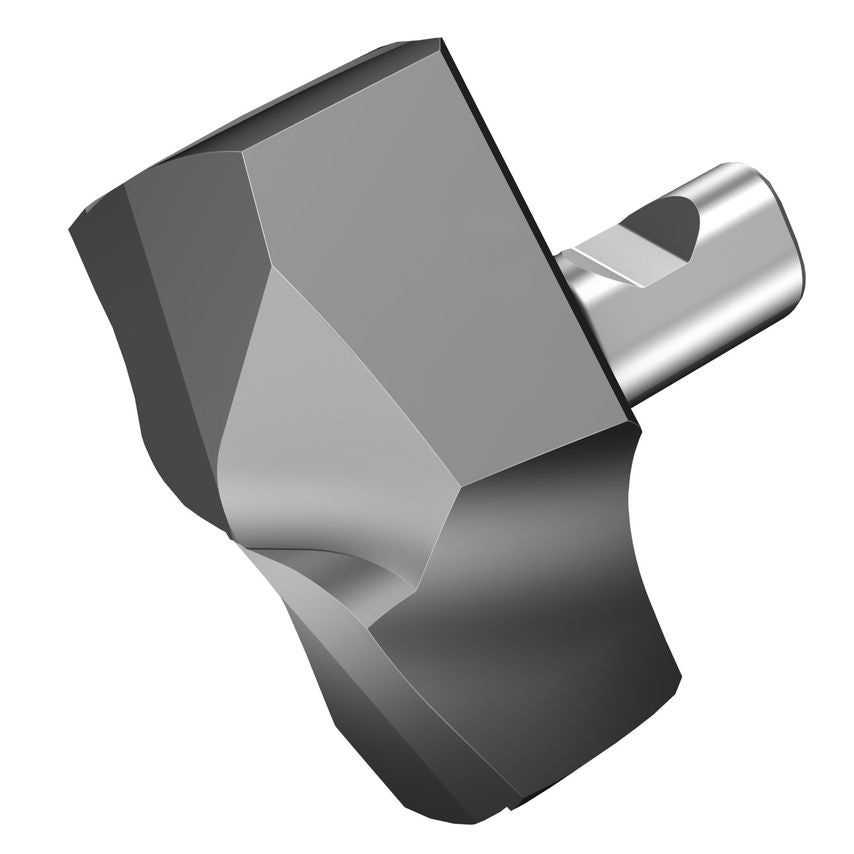

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Through Hole Function Property | Yes |
| Functional Length | 72mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Size/Shape | CoroDrill 870 - Size 15 |
| Coating Type | TiAlN |
| Insert Mounting Style | Clamp |
| Hand Preference | Right |
| Cutting Diameter | 25.5mm |
| Achievable Hole Tolerance | F9 |
| Cutting Edge Count | 1 |
| Coating Process Type | PVD |
| Grade | 4334 |
| MFR Part No. | 7357765 |
| Weight | 7.1g |
| CoroPak | 18.2 |
| Unit System | Metric |
| Point Angle | 152\u00b0 |
