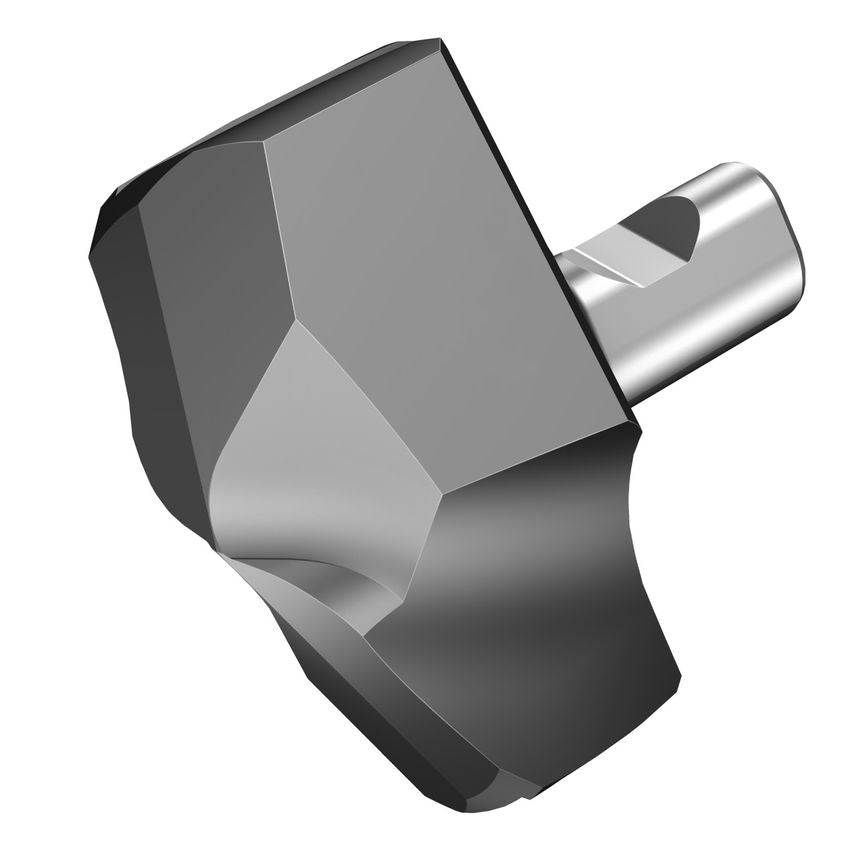

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Functional Length | 0.7mm |
| Through Hole Function Property | Yes |
| Cutting Diameter | 26.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Insert Mounting Style | Clamp |
| Insert Size/Shape | CoroDrill 870 - Size 15 |
| Weight | 8g |
| Unit System | Metric |
| Cutting Edge Count | 1 |
| Hand Preference | Right |
| Point Angle | 142\u00b0 |
| Grade | 3334 |
| Achievable Hole Tolerance | H9 |
| Coating Process Type | PVD |
| CoroPak | 18.2 |
| Coating Type | AlTiCrN |
| MFR Part No. | 7357770 |
