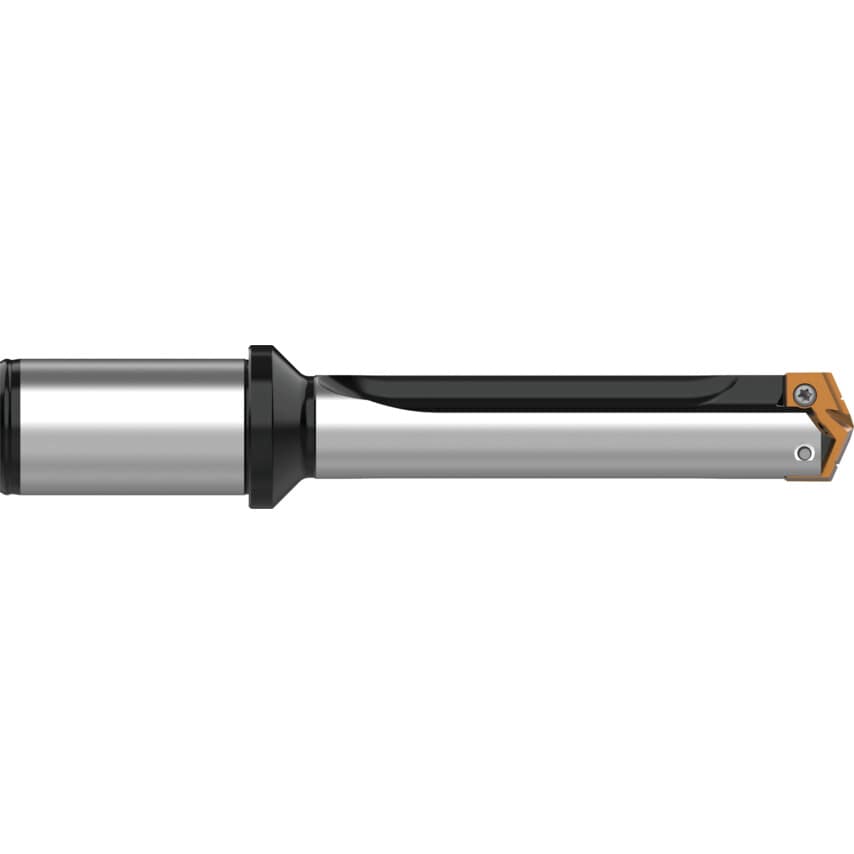

2-C TA Pro Holder 5XD Length 32mm Flanged Shank

These replaceable insert drill holders offer an ideal solution for medium-sized job shops as well as in high-production facilities. Each drill holder achieves phenomenal tool life at high penetration rates, especially in situations where the balance of chip formation is critical. These drill holders are designed to increase productivity across multiple industries including automotive, heavy equipment, firearms, defense, and agriculture. Features and Benefits Achieves phenomenal tool life even at high penetration rates, ensuring consistent performance and reducing downtime Proprietary coolant outlet configuration provides superior performance, even in low coolant applications, enabling smooth operation in extreme conditions while reducing wear and heat generation Unique design performs reliably at speeds far exceeding typical spade drill limits, maximising output in short production runs and general-purpose applications The T-A pro delivers consistent, predictable results in high-stress environments

Body Length	196.9mm
Minimum Diameter	28.5mm
Depth x Diameter Ratio	5xD
Deep Hole Guidelines	No
Maximum Diameter	35.04mm
Drill Depth	148.7mm
Sub-Series	C
Shank Length	60mm
Shank Type	Flanged
Overall Length	256.9mm
Tool Reference Length	200.5mm
Flute Type	Straight
Shank Diameter	32mm
Series	2
