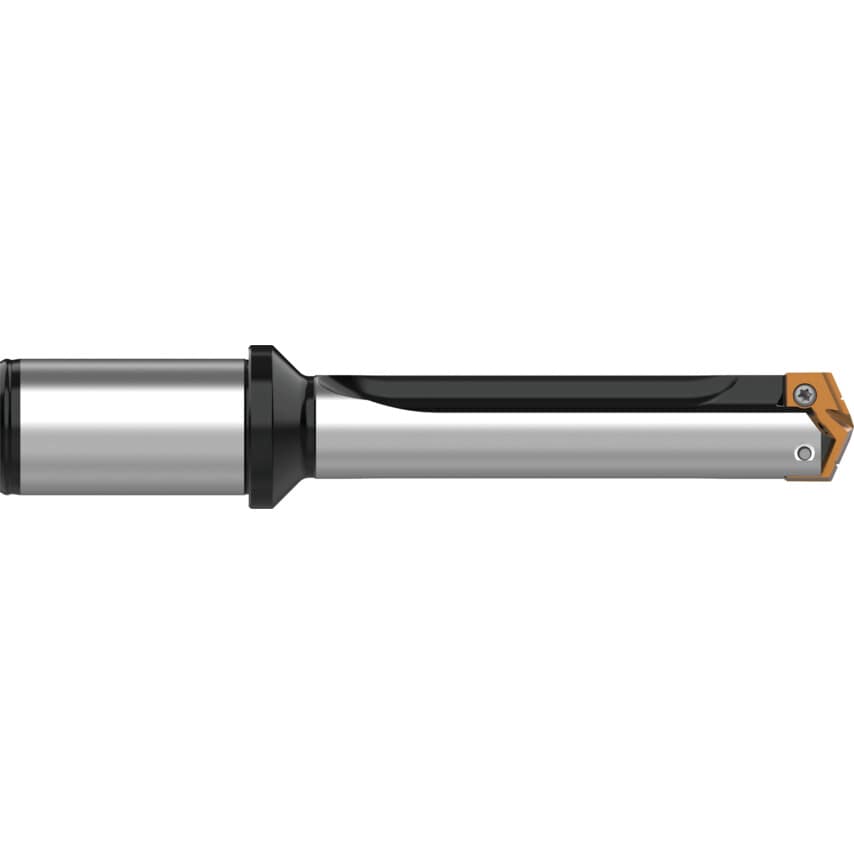

These replaceable insert drill holders offer an ideal solution for medium-sized job shops as well as in high-production facilities. Each drill holder achieves phenomenal tool life at high penetration rates, especially in situations where the balance of chip formation is critical. These drill holders are designed to increase productivity across multiple industries including automotive, heavy equipment, firearms, defense, and agriculture.
Features and Benefits
Achieves phenomenal tool life even at high penetration rates, ensuring consistent performance and reducing downtime
Proprietary coolant outlet configuration provides superior performance, even in low coolant applications, enabling smooth operation in extreme conditions while reducing wear and heat generation
Unique design performs reliably at speeds far exceeding typical spade drill limits, maximising output in short production runs and general-purpose applications
The T-A pro delivers consistent, predictable results in high-stress environments
| Overall Length | 332.3mm |
| Deep Hole Guidelines | No |
| Shank Diameter | 40mm |
| Shank Type | Flanged |
| Flute Type | Straight |
| Depth x Diameter Ratio | 5xD |
| Tool Reference Length | 267mm |
| Sub-Series | C |
| Minimum Diameter | 41mm |
| Shank Length | 70mm |
| Series | 3 |
| Drill Depth | 205.5mm |
| Maximum Diameter | 47.8mm |
| Body Length | 262.3mm |
