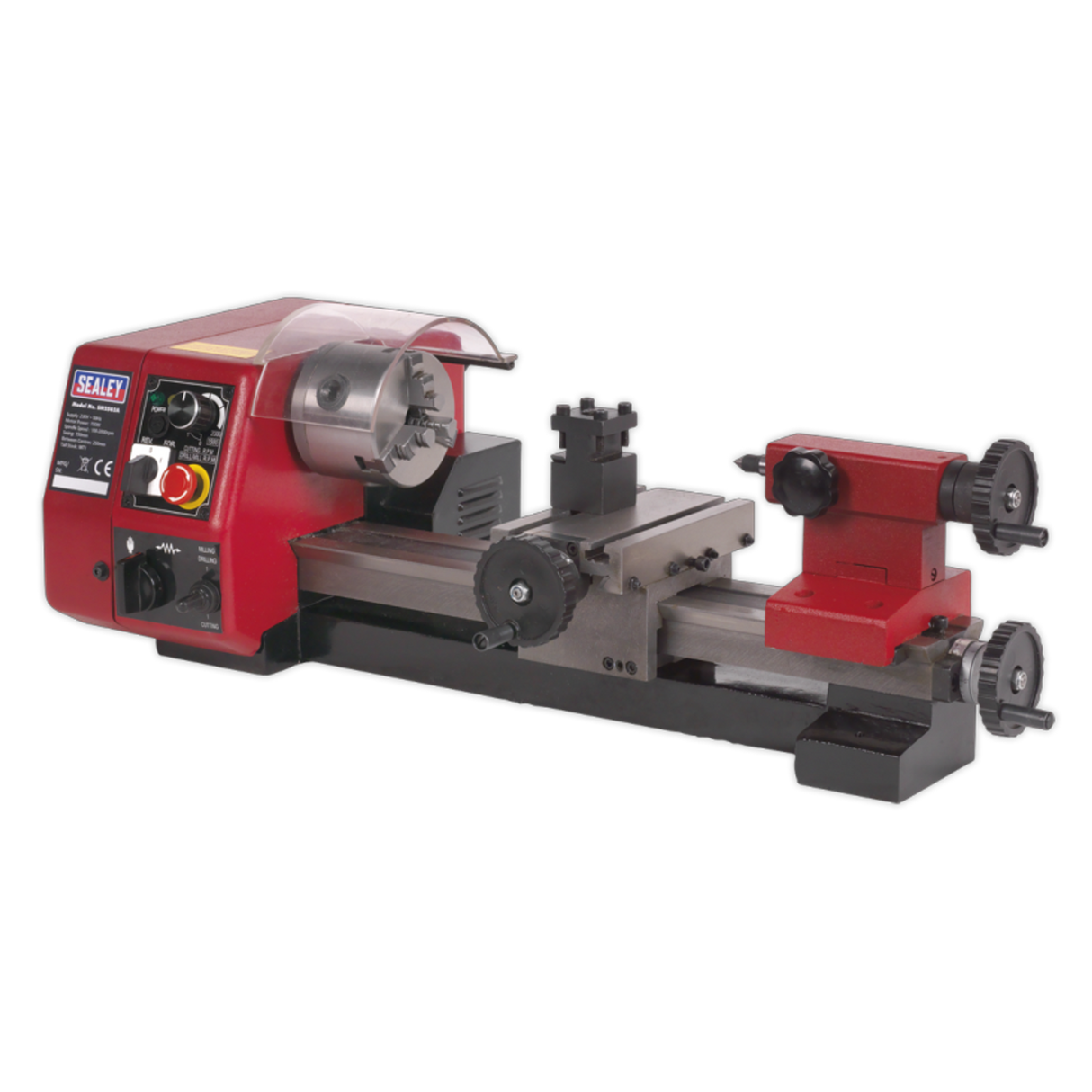

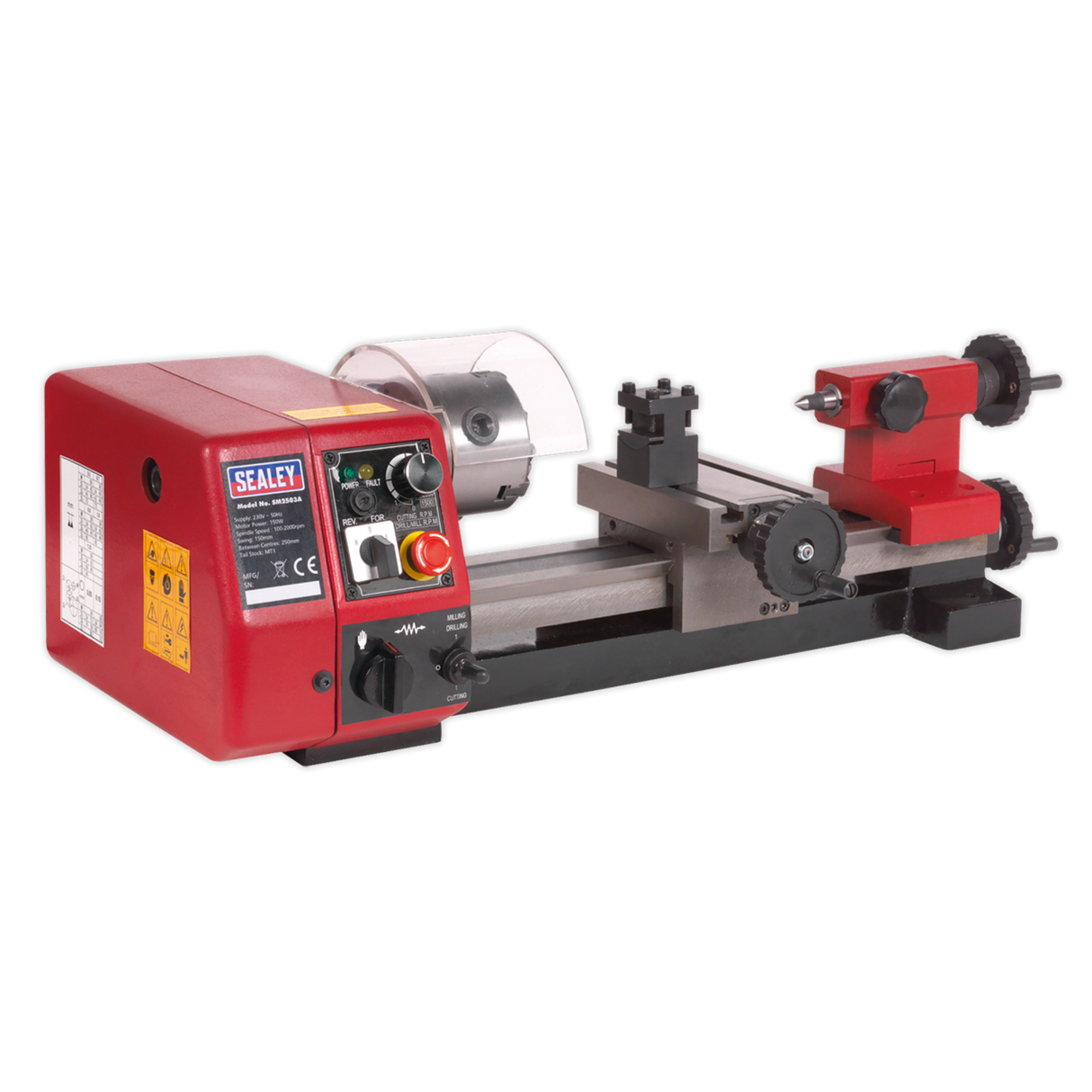

Bench mounting miniature lathe, small enough to fit into the corner of a workshop and light enough to be truly portable. Construction is predominately cast iron and steel. Fitted with 150W high torque motor. The capacities are 150mm swing over bed and 250mm between centres. Features variable speed control, manual or powered lead screw feed and over-load protection. Supplied with 80mm 3-jaw self centring chuck, tailstock centre and service tools. An extensive range of accessories are available, for the full range see page XXX & XXX. Option to upgrade with a mill/drill head - order Model No. SM2503B.
| Swing Over Bed | 150mm |
| Tailstock Taper | MT1 |
| Weight | 26.2kg |
| Motor Power | 150W - 230V |
| Distance Between Centres | 250mm |
| Spindle Hole Taper | MT2 |
| Weight (kg) | 26.2 |
| Cross Slide Travel | 50mm |
| Range of Metric Threads | 5 Pitches (0.5-1.25mm) |
| Spindle Speed (Variable) | 100-2000rpm |
| MFR Part No. | SM2503A |
