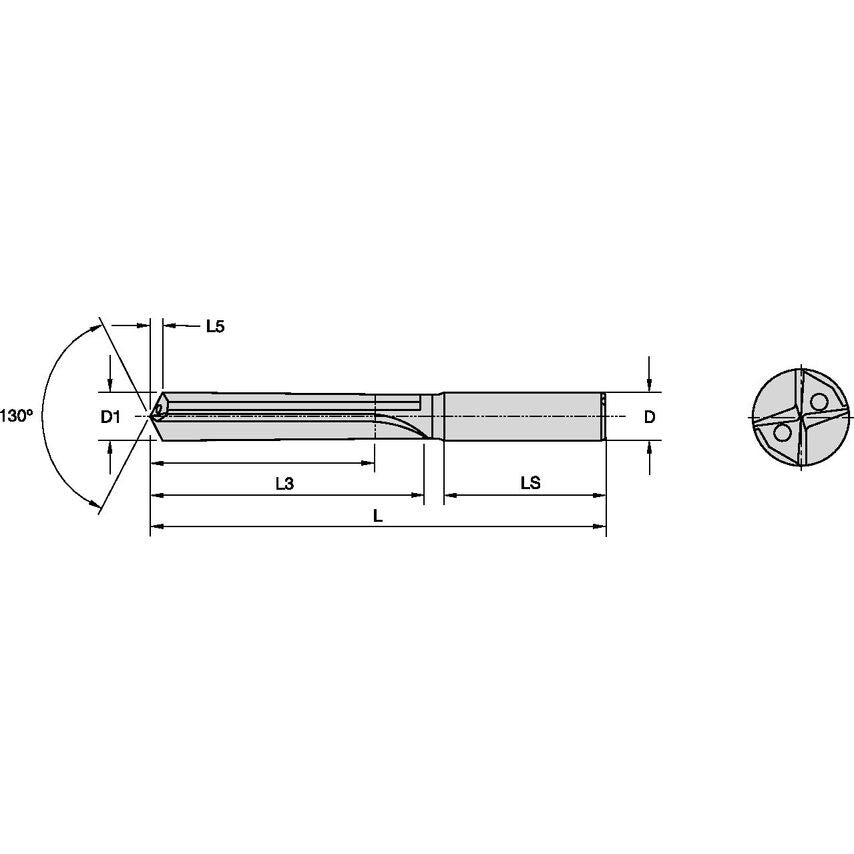

TX Drills Close Tolerance Holes Through Coolant
Solid Carbide Drills
| Helix Angle | 0.000 |
| Functional Length | 162.1040mm |
| MFR Part No. | 1198711 |
| Primary Material | Cast Iron |
| Drill Depth | 85mm | 85.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Finish/Coating | Uncoated |
| Drill Point | 4.896mm |
| Adapter / Shank / Bore Diameter | 20.0000mm |
| Flute Construction | Straight Flute |
| Adapter Style | Straight-Cylindrical |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | 0.002000 to 0.015000mm |
| Shank Length | 50.0000mm |
| Material | Carbide |
| Flute Length | 114mm | 114.0000mm |
| Overall Length | 167mm | 167.0000mm |
| Coolant Supplied | Yes |
| Adapter Type | Cylindrical |
| Drill Diameter | 21.0000mm |
| Unit Measured | Metric |
| Clamping Length | 50mm |
| Hand Preference | Right |
| Gage Length | 116mm |
| Assembly Length | 112.104mm |
