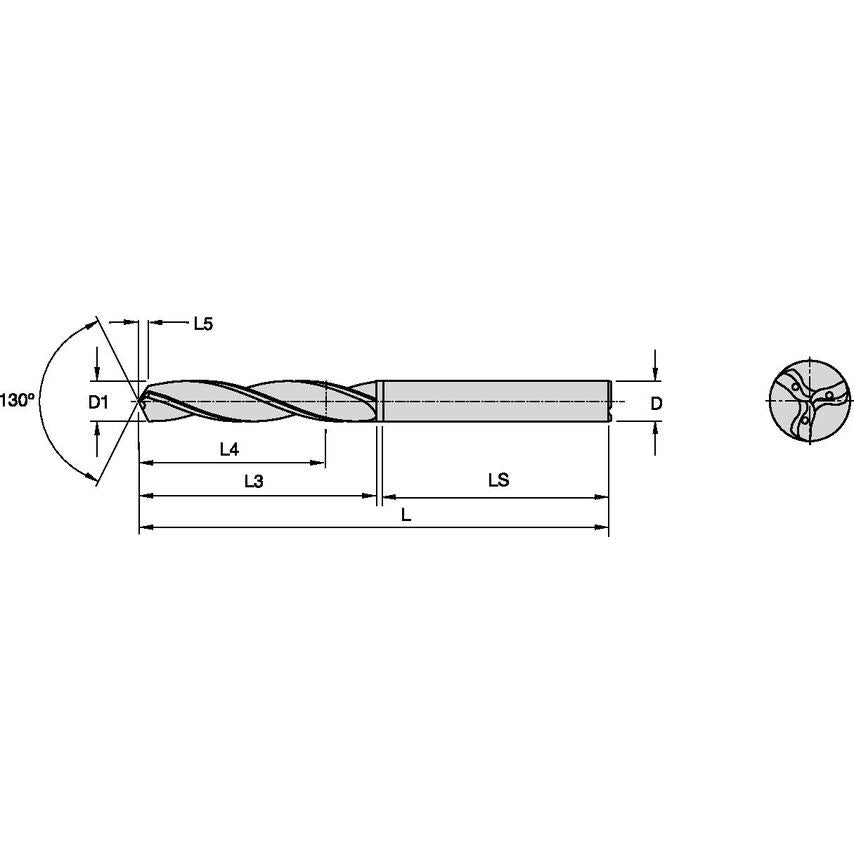

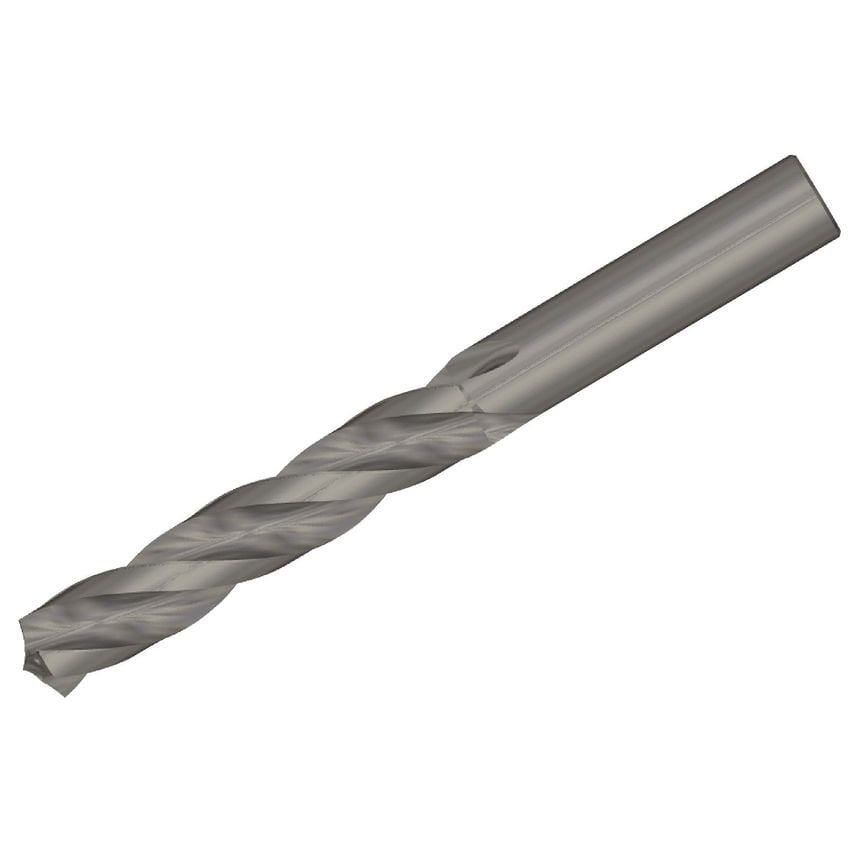

TF Drills Titanium Materials Through CoolantSolid Carbide Drills
| Unit Measured | Imperial |
| Coolant Supplied | Yes |
| Assembly Length | 84.125mm |
| Adapter / Shank / Bore Diameter | 11.113mm | 11.1130mm |
| Drill Depth | 53.1mm | 53.1000mm |
| Finish/Coating | Uncoated |
| Gage Length | 68.5mm |
| MFR Part No. | 1762650 |
| Shank Length | 64.5010mm |
| Helix Type | Right Hand Helix/Flute |
| Overall Length | 133mm | 133.0000mm |
| Clamping Length | 46mm |
| Adapter Type | Cylindrical |
| Coolant Delivery | Off-center Axial Coolant |
| Drill Diameter | 10.7160mm |
| Flute Construction | Helical Flute |
| Hand Preference | Right |
| Functional Length | 130.1250mm |
| Drill Diameter Tolerance | 0.007000 to 0.018000mm |
| Material | Carbide |
| Drill Point | 2.875mm |
| Flute Length | 66mm | 66.0000mm |
| Number of Flutes | 2 |
| Helix Angle | 30.132 |
| Adapter Style | Straight-Cylindrical |
