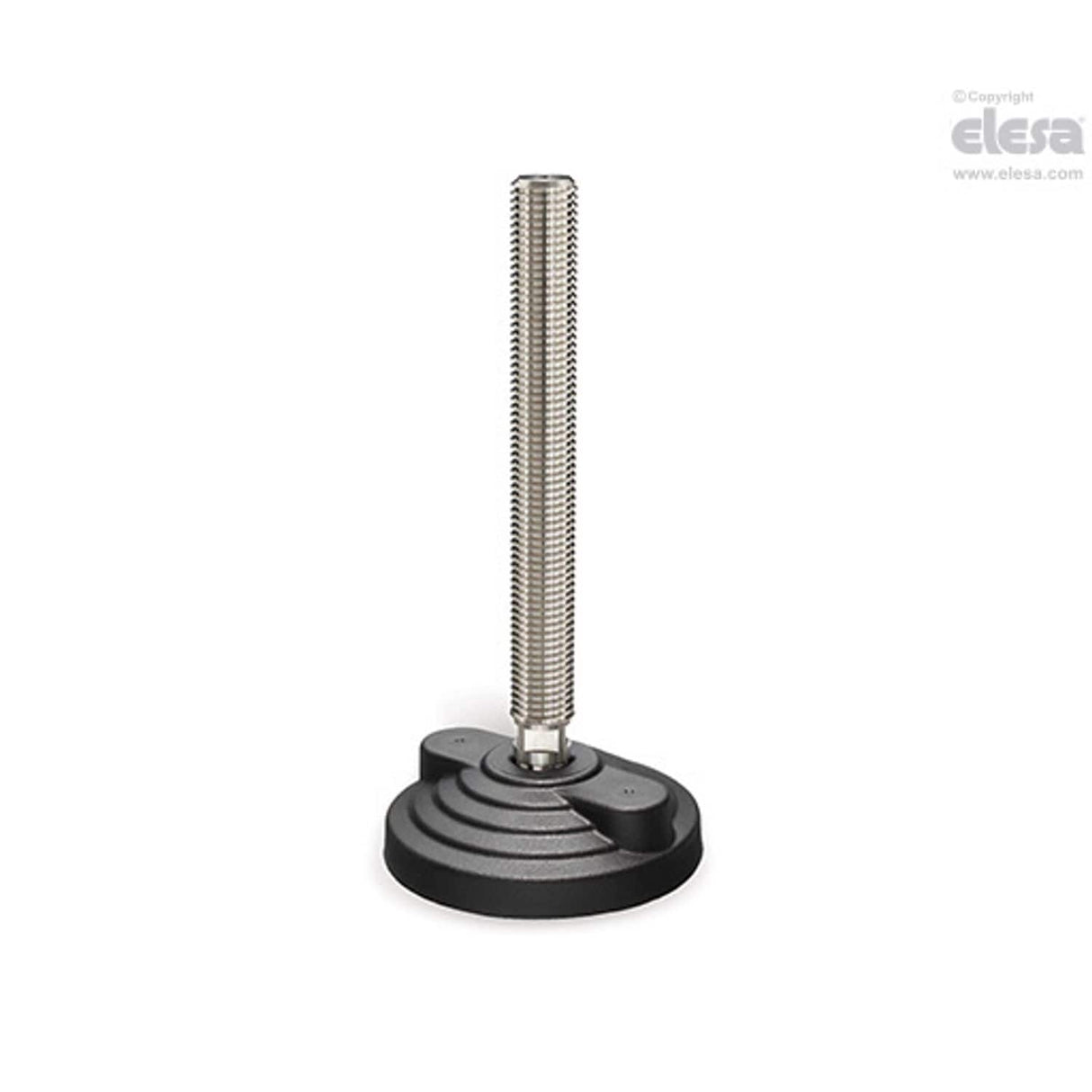

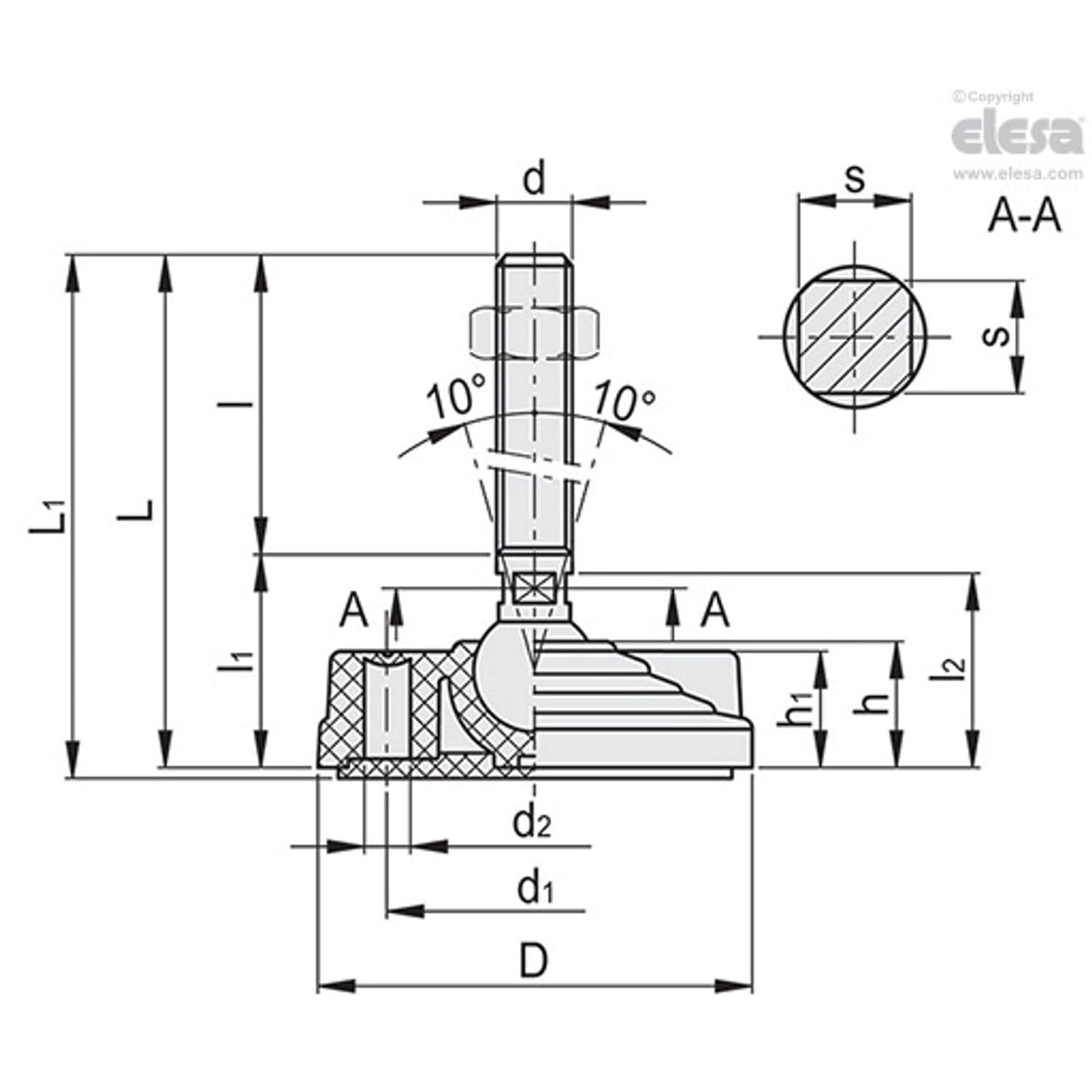

LVQ.F-SST Levelling feet for ground mounting, Technopolymer base, stainless steel stem For product drawing and dimensions refer to pdf Item data sheet.
| L1 | 212 |
| d | M20 |
| h | 24 |
| h1 | 23 |
| MFR Part No. | LVQ.F-80-14-AS-SST-M20x170 |
| D | 80 |
| d1 | 54 |
| L | 209 |
| d2 | 8.5 |
| l1 | 39 |
| l2 | 36.5 |
| Diameter | 80mm |
| s | 15 |
| l | 170 |
