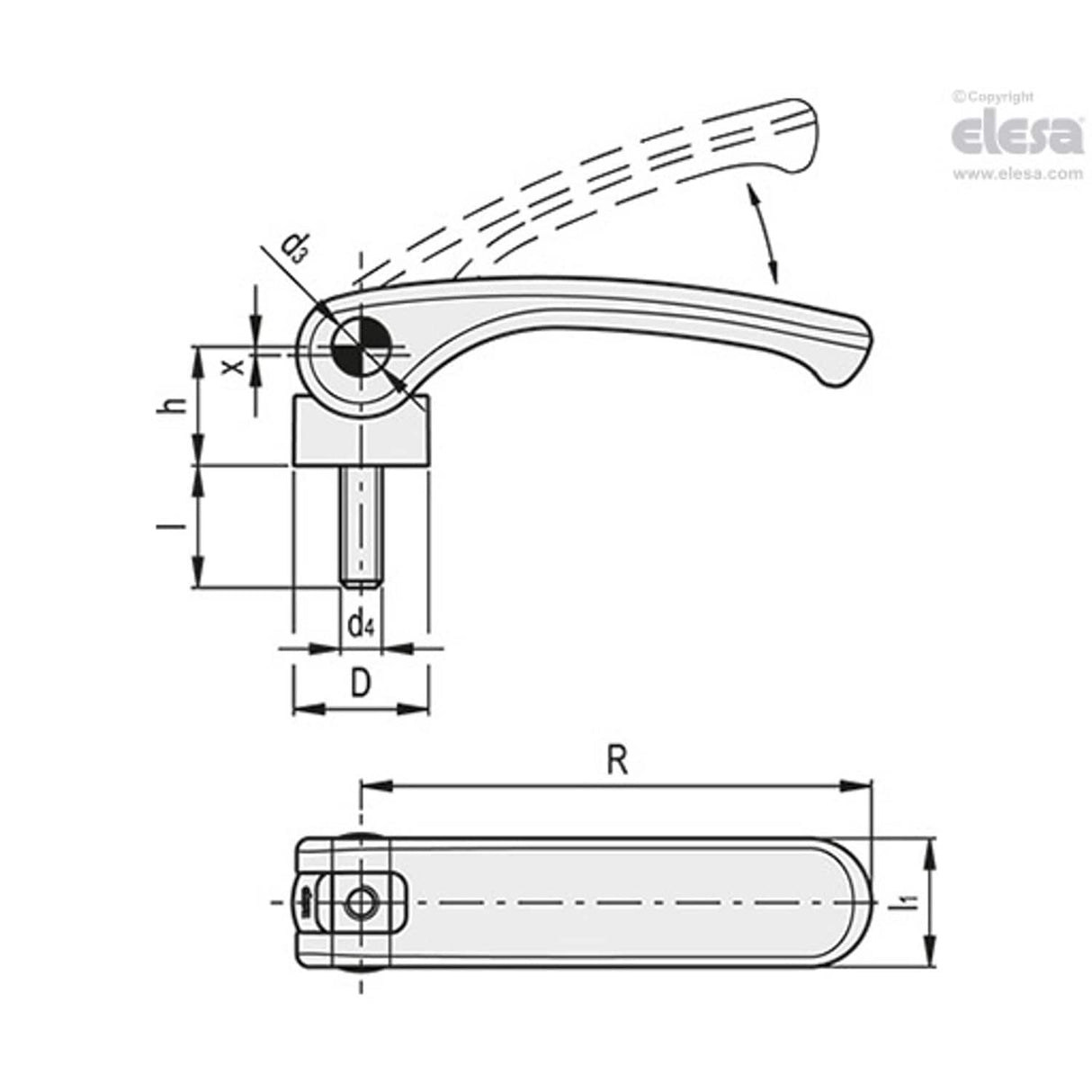

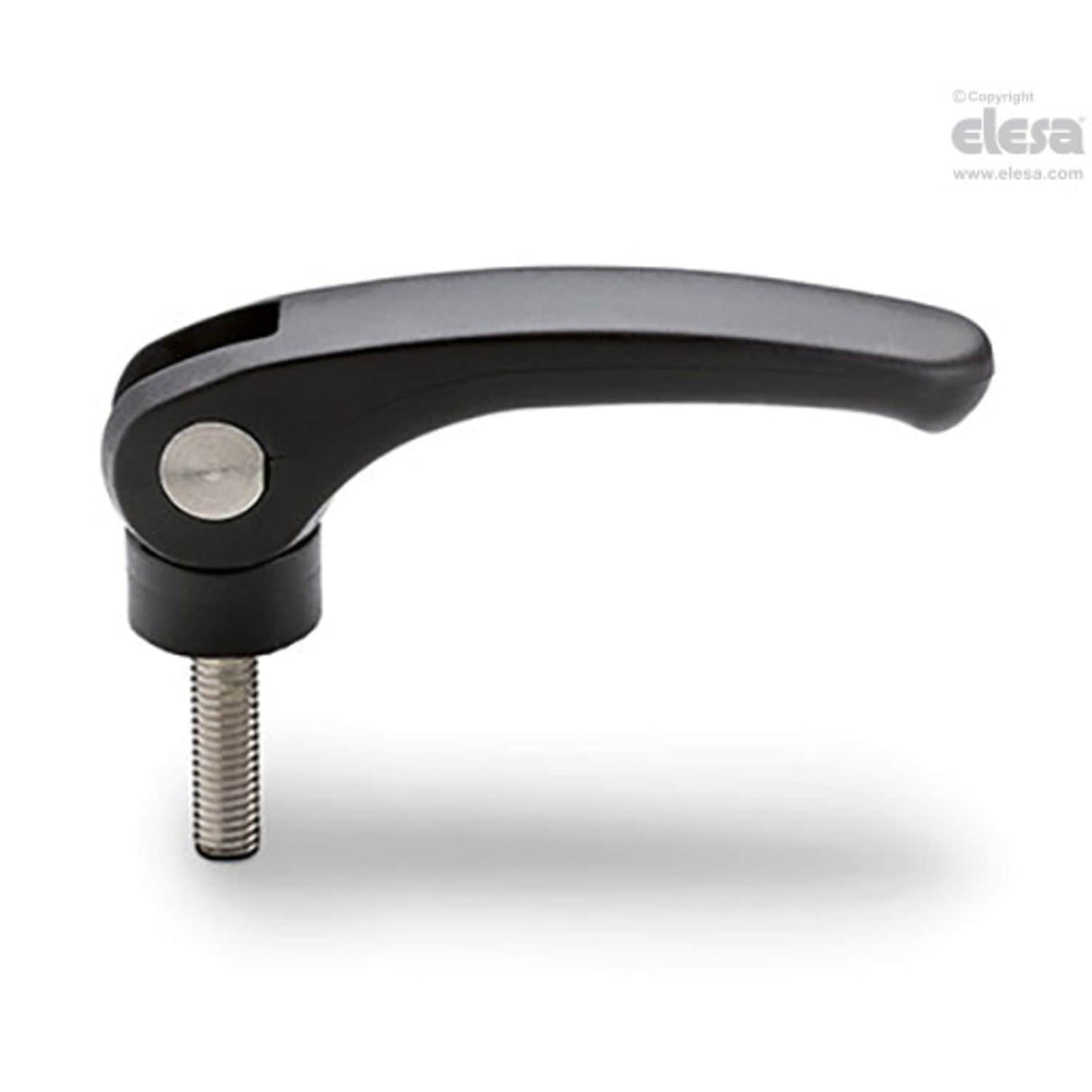

LAC. Cam levers, Technopolymer, Without adjustable ring-nut, rotating pin with AISI 303 stainless steel threaded stud For product drawing and dimensions refer to pdf Item data sheet.
| d4 | M5 |
| MFR Part No. | LAC.63-SST-p-M5x50 |
| x | 0.75 |
| Diameter | 17.5mm |
| l | 50 |
| D | 17.5 |
| h | 18 |
| l1 | 18 |
| R | 63 |
| d3 | 9 |
