Functional Length: 18 mm
CoroPak: 5.1
Coolant Entry Style Code: 1: axial concentric entry
Adaptive Interface Machine Direction: SL head (screw mounted) -size 40

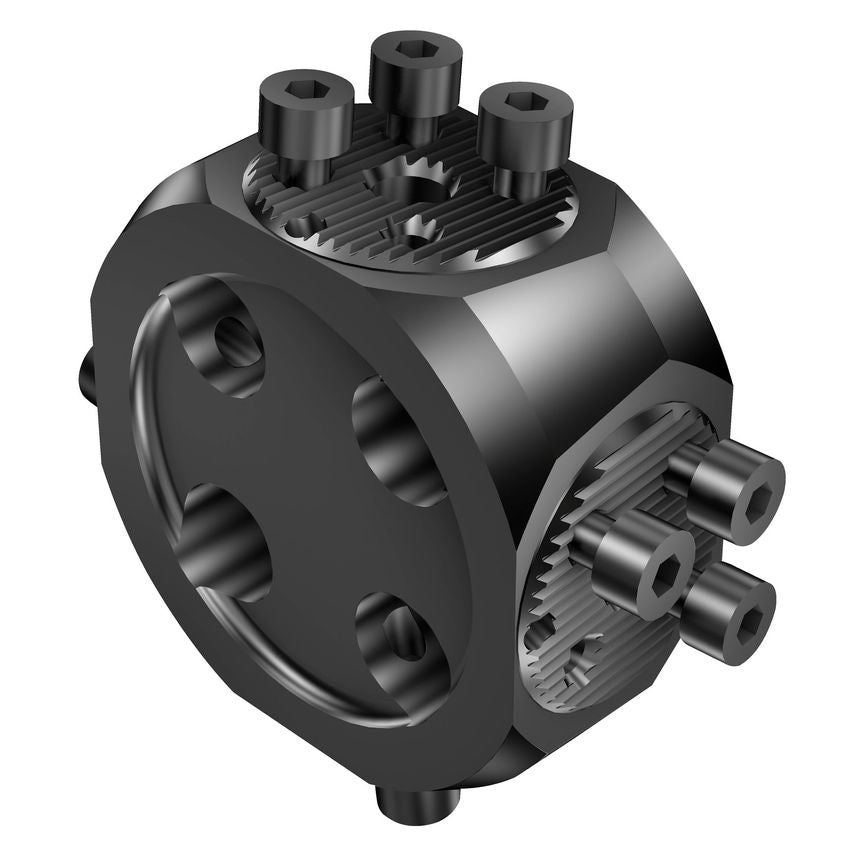

Product Type: Mini-turret for four CoroTurn SL heads
Body Material Code: Steel
Through Hole Function Property: Yes
Item Weight: 0.477 kg
Workpiece Side Body Angle: 95 deg
Coolant Exit Style Code: 1: axial concentric exit
Unit System: Metric
| Coolant Entry Style Code | 9.5 |
| Weight | 0.48kg |
| Unit System | Metric |
| Overall Height | 49.3mm |
| MFR Part No. | 12010670 |
| Connection Diameter | 40mm |
| Workpiece Side Body Angle | 95\u00b0 |
| Coolant Exit Style | 1 |
| Functional Length | 18mm |
| Through Hole Function Property | Yes |
| Overall Width | 49.3mm |
| Body Material | Steel |
| CoroPak | 80 |
